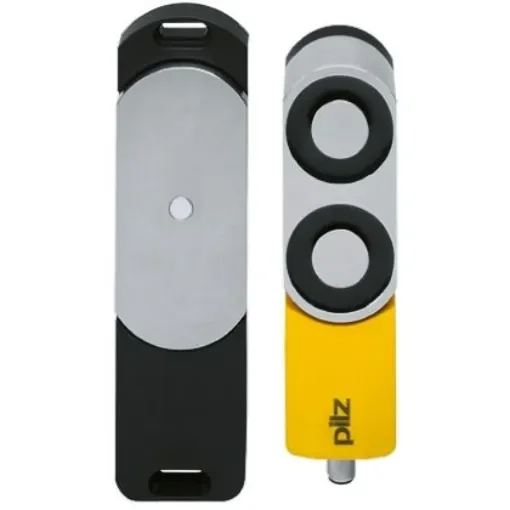

Pilz PSENslock Series Solenoid Interlock Switch, 24V dc, Actuator Included - 570630

Pilz Safety Gate SystemThe Pilz PSENslock series safety gate system has an assured release distance of 8mm. It has 2OSSD RFIDsafety outputs. It is a non-contact safety gate system which combines safety gate monitoring and a non-contact magnetic interlock in a single unit. The combination of safe position monitoring and process guarding make the PSENslock suitable for universal use and high category applications. This magnetic guard locking device is largely non-wearing, as compared to mechanical technologies.Features and BenefitsInput The supply voltage is 24VDC Holding force is 1000N Type of coding is coded System optimised for safe position monitoring with process guarding high-level of manipulation protection (coding) Process protection through magnetic guard locking Four assembly directions Tolerant to gate misalignment Flexible connectors Optimised for mounting on to 45mm profiles User-friendly diagnostics via double sided LED display Long product service life as it is mechanically non-wearing Housing material is Anticorodal, hard anodised Connection type is M12, 8-pin male Operating temperature ranges between -25°C and 55°CCertificationsIP67 rated PLe Cat. 4 CE certified cULus approved TÜV certified FCC certified IC certified EAC (Eurasian) certified
