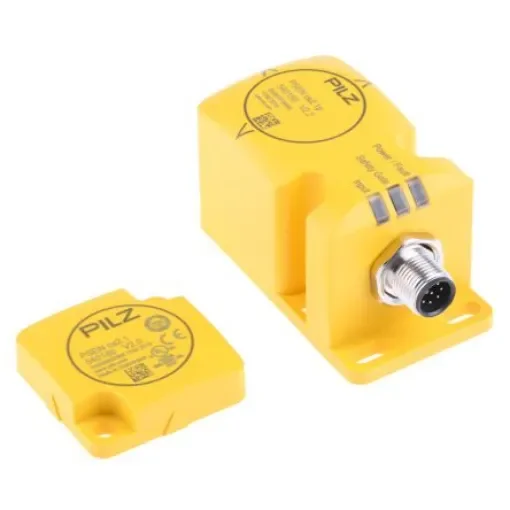

Pilz PSENmag Series Transponder Non-Contact Safety Switch, 24V dc, Plastic Housing, M12 - 540100

Pilz Non-contact SwitchThe Pilz PSENcode series non-contact safety switch has an assured switching distance of 15mm. It has 2OSSD RFIDsafety outputs. It is coded and the only switch with an actuator from the PSEN cs3.1 series. Supplied with: Actuator Caution: EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used. Note: When the safety gate is closed the switch provides 2 N/C semiconductor outputs.Features and BenefitsInput The supply voltage is 24VDC 4 directions of actuation Fully coded Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1 Unique assignment of the switch and its actuator Five directions of actuation Connection type is M12, 8-pin male Housing material is plastic Operating temperature ranges between -25°C and 70°CApplicationsIndustrial environmentCertificationsIP67 rated EN 60947-5-3 EN 62061 SIL CL 3 EN ISO 13849-1 PLe Cat. 4 EN ISO14119 CE certified UL approved TÜV certified BG certified CCC certified FCC certified IC certified
