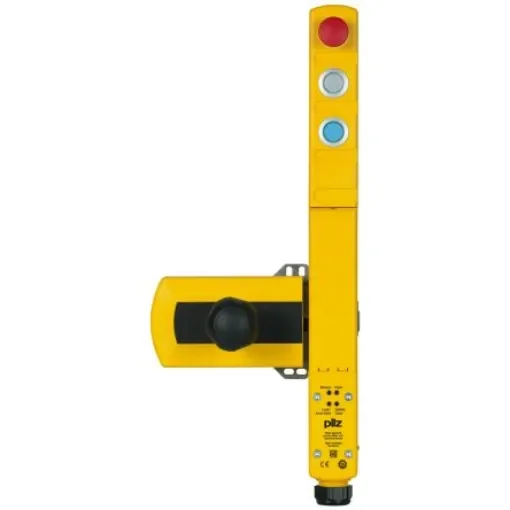

Pilz PSEN sg2c Series Solenoid Interlock Switch, 24V dc, Actuator Included - 570800

Pilz Safety Interlock SwitchThe Pilz PSENsgate safety interlock switch has a supply voltage rating of 24VDC. It has 2NC safety contact. This is a gate monitoring system combines secure safety gate monitoring, safe guard locking and control elements in one system. Also, additional functions such as E-STOP and escape release are included with this non-contact switch.Features and BenefitsActuator type is handle Release type is turn release Safe guard locking device Safe interlocking Transponder technology 2 safety inputs for series connection of several safety switches 2 safety output Locking pin keeps the bolt tongue from being opened unintentionally Detection of bolt tongue and locking pin breakage Padlock for restart interlock Auxiliary release for opening the safety gate, when the plants voltage is switched OFF Escape release for fast release in emergency situations from within the danger zone Suitable for left and right hinged gates Plug-in spring-loaded terminals LED for supply voltage/fault, gate closed, status of the hazardous machinery, status of the inputs, bolt tongue is engaged Conduit entry is M12CertificationsIP54 rated VDE 0660 T100 EN 60947-1 VDE 0660 T200 EN 60947-5-1 IEC 60947-5-1 GS-ET-19 EC certified BG certified TUV certified CE certified CSA certified
