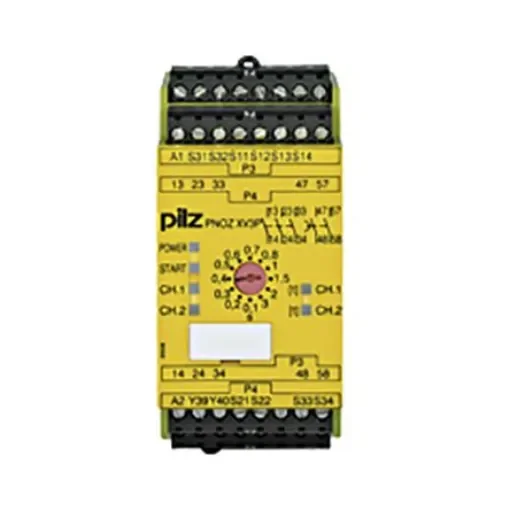

Pilz PNOZ X PNOZ XV3P Emergency Stop Safety Relay, 24V dc, Dual-Channel, 3 Safety Contacts - 777512

Supply Voltage = 24V dc
Number of Channels = 2
Safety Contacts = 3
Function = Emergency Stop
Auxiliary Contacts = 2
Reset Method = Automatic & Manual
Range = PNOZ X
Terminal Type = Screw
Series = PNOZ XV3Pmm
Length = 94mm

EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, EN 60947-5-1. CE, cULus Listed, TÜV, CCC. PNOZ XV3 Safety Relay. The PNOZ XV3P 3 safety relay provides a safety-related interruption of a safety circuit. It meets the requirements of EN 60947-5- 1, EN 60204-1 and VDE 0113-1. Features and Benefits. Relay outputs, instantaneous 3 safety contacts (n/o), positive-guided Relay outputs, delay-on re-energised: 2 safety contacts (n/o), positive-guided with adjustable or fixed delay-on de-energisation (dependent on unit) LED for operating voltage, LED's for switching positions of all output relays and reset circuit Connection for safety limit switches, E-stops, safety gate switches and for external reset buttons Output circuit is redundant Single or two channel operation Feedback control loop for monitoring external contactors/relays Prevents machine operation in the event of a power supply failure, component failure, coil defect in a relay, cable break and earth fault DIN Rail mounted Screw terminals. Applications. The PNOZ XV3P 3 safety relay is used in applications with E-stops and safety gates.
