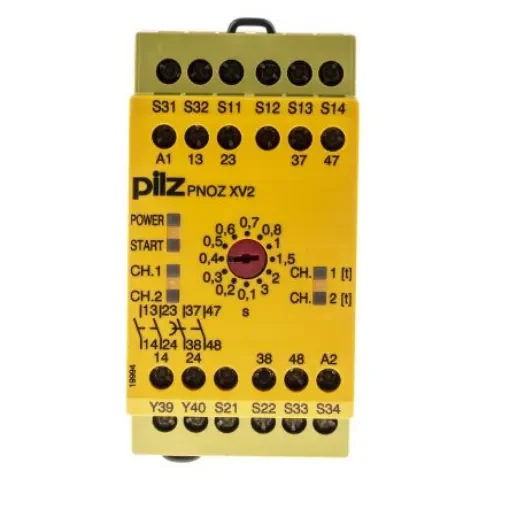

Pilz PNOZ X PNOZ XV2 Emergency Stop Safety Relay, 24V dc, Dual-Channel, 2 Safety Contacts - 774502

Length = 87mm

EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, EN 60947-5-1. CE, cULus Listed, TÜV, KOSHA, CCC. PNOZ XV2 Safety Relay, Adjustable Time Delayed. The PNOZ XV2 range of safety relays from PILZ offers you safety and performance of a top branded safety relay all in one. The PNOZ XV2 offers you different modes of operation such as single or dual channel switches. Suitable for several different applications which are listed below. Features and benefits:. DIN rail mounted with screw terminals 2 instantaneous delay-on re-energised safety contacts LED operating voltage displayed alongside switching psitions and also the reset circuit Connections built in for safety limit switches, e-stops and more Single or dual channel operation Simple and fast wiring saving you time, effort and money long term Save costs when exchanging units (there ‘s no need to rewire therefore you should eliminate potential wiring errors). Electromechanical, potential-free. Safety features. The circuit is redundant with built-in self-monitoring. The safety function remains effective in the case of a component failure. The correct opening and closing of the safety function relays is tested automatically in each on-off cycle. International certification Faster commissioning and simple wiring through units with plug-in terminals High plant availability and short downtimes thanks to a convenient diagnostic options on the device. Applications. E-STOP pushbuttons Safety gate limit switches Reset buttons. Technical safety parameters. EN 60947-5-1 EN 60204-1 VDE 0113-1
