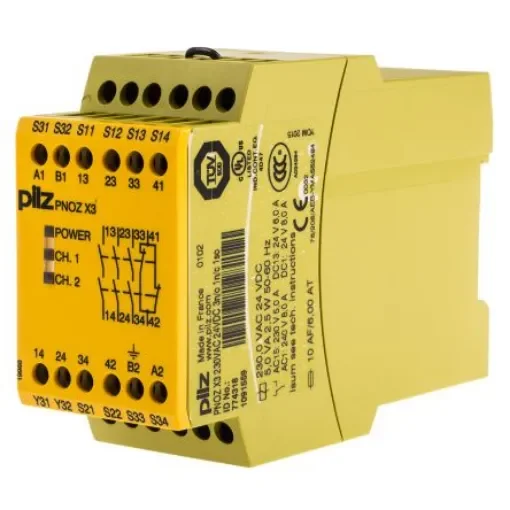

Pilz PNOZ X PNOZ X3 Emergency Stop Safety Relay, 24 V dc, 230V ac, Dual-Channel, 3 Safety Contacts - 774318

Supply Voltage = 24 V dc, 230V ac
Number of Channels = 2
Safety Contacts = 3
Function = Emergency Stop
Auxiliary Contacts = 1
Reset Method = Automatic, Monitored
Range = PNOZ X
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Series = PNOZ X3mm
Performance Level = emm

CE, cULus Listed, TÜV, KOSHA, CCC. PNOZ X3 Series of Safety Relays by PILZ. The PNOZ X3 range of Safety Relays by PILZ introduces your circuit to a safety related interruption wherein the primary applications are typically in potential hazardous environments where you need that quick power cut off. Particularly useful in automated environments with high foot traffic such as factories and warehouses. Features and benefits. LED indicator statuses to support switching channel status between 1 or 2 signals ; also for monitoring the supply voltage currently in the relay Semiconductor output signals: switch status channel 1 / 2 3 safety contacts and 1 auxiliary contact Several connection outputs ; status indicators Your opening and closing of the safety function relays is tested automatically within each on-off cycle A monitored manual reset is available in this unit DIN rail mounting as standard. Safety features. The circuit is redundant with built in self-monitoring Reliable X3 functionality means your safety function remains effective even in the event of component failure The transformer is short circuit proof and an electronic fuse is used on a DC supply. Applications. Emergency stop buttons Safety gate limit switches Reset buttons Light barriers. Technical safety parameters. EN 60204-1 EN (IEC) 62061 EN ISO 13849-1 VDE 0113-1 EN 60947-5-1
