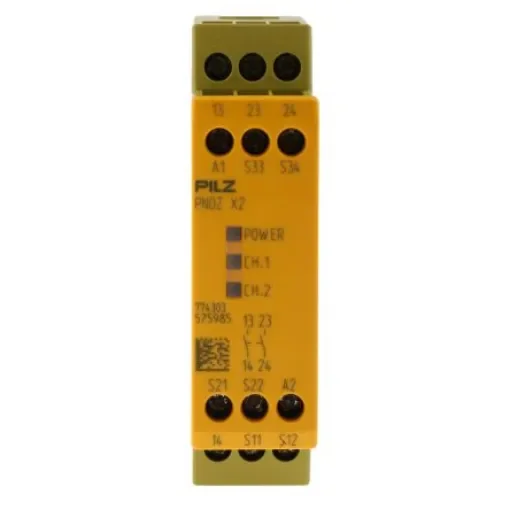

Pilz PNOZ X PNOZ X2 Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 2 Safety Contacts - 774303

Supply Voltage = 24V ac/dc
Number of Channels = 2
Safety Contacts = 2
Function = Emergency Stop
Reset Method = Manual
Range = PNOZ X
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Width = 22.5mm
Performance Level = emm

PILZ PNOZ X2 Safety Relay, Multi-Channel (Dual). The PNOZ X2 series from PILZ offering reliable performance to your safety circuitry. Confidence in monitoring your safety circuits has never been easier than with the use of a PILZ X2. Features and benefits. LED indicator for switching your channel status from 1 to 2 and also to monitor your supply voltage Several connection options are available for ESTOP pushbuttons, Safety gates ; reset buttons. Single or Dual channel input operation (Single channel are used more beneficially with smaller type machines where you need to use a dedicated logic device that only has a small function to cut off in an emergency – Dual allows you to take control of more safety circuits and control a greater amount of control zones at any given time) Suitable for DIN rail mounting The safety function will remain effective in the case of a component failure Monitored manual reset is an option with this relay. Safety features. The circuit is redundant with built in self-monitoring. Applications. Emergency stop buttons Safety curtains External relay/contactor monitoring Safety switch/interlocks
