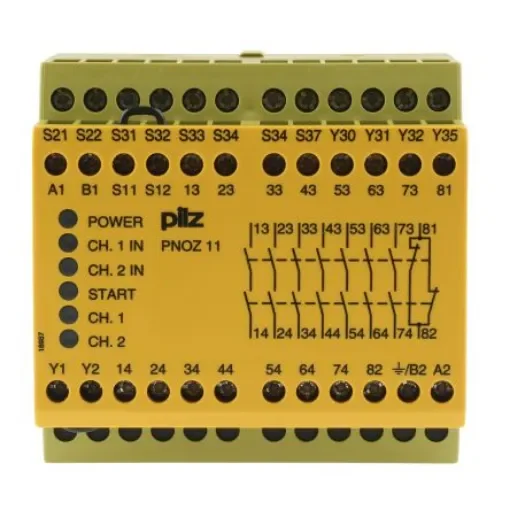

Pilz PNOZ X PNOZ 11 Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 7 Safety Contacts - 774080
Ensure safety with the Pilz PNOZ X Emergency Stop Relay, featuring dual-channel operation and 7 safety contacts.
Manufacturer part number: 774080
GTIN: 4046548012132
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24V ac/dc
Number of Channels = 2
Safety Contacts = 7
Function = Emergency Stop
Auxiliary Contacts = 1
Reset Method = Automatic, Manual, Monitored
Range = PNOZ X
Safety Category ISO 13849-1 = 4
PL ISO 13849-1 = e
SIL IEC 61508 = 3
Terminal Type = Screw
Series = PNOZ 11mm
Length = 87mm
Safety Relay for Emergency Stop Circuits and Safety Gates, PNOZ 11. Single or dual channel cabling with short-circuit detection Choice of self-monitoring or automatic reset Display LEDs for status of channels 1 and 2, input circuits, power supply voltage and reset Return loop for monitoring external contactors 2 solid state outputs
