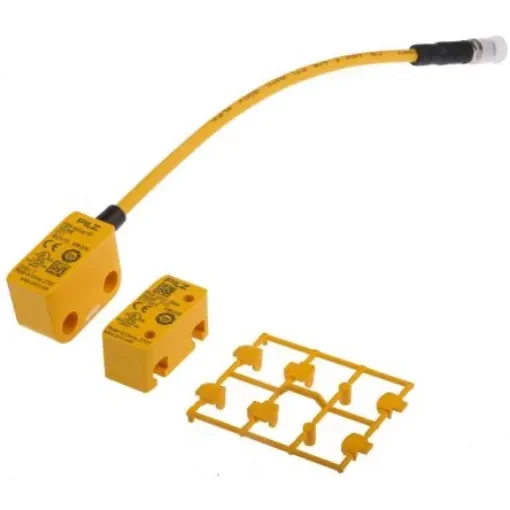

Pilz Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NO, M8 - 506334

Pilz Non-contact SwitchThe Pilz PSENmag series non-contact safety switch has an assured switching distance of 10mm. It has 2NO safety contact. It meets the highest safety requirements and offers a complete solution that is safe and economical. Supplied with actuator Caution: EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENmag), an actuator (PSENmag) and a safety-monitoring module (PNOZ X) is used. Note: Only stock nos. 744-8702 and 824-4918 have an LED.Features and BenefitsInput The supply voltage is 24VDC Connected via a plug connection or with cable Flexible cable outlet, including connector, so there is no need for an angled connector Flexible mounting, both the sensor and actuator support every conceivable mounting configuration Cost effective because of the series connection Extra signal contact Connection type is M8, 4-pin male Housing material is Plastic Operating temperature ranges between -25°C and 70°CApplicationsHeavy soilingCertificationsIP65 rated IP67 rated EN954-1 (Cat 4) EN60204-1 EN60947-5-3 ATEX approved Electrosuisse certified CE certified UL approved TÜV certified BG certified CCC certified
