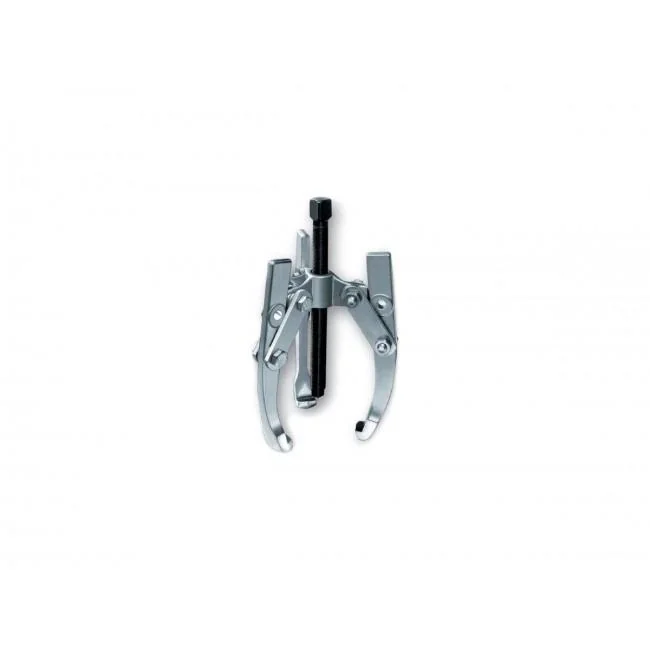

The PIHER Self-Centering Three-Legged Pulley Extractor is a versatile tool designed for the professional removal of pulleys, gears, ball bearings, and similar components from shafts or axles. Its self-centering mechanism ensures that all three legs move simultaneously, providing parallel extraction and preventing damage to the shaft. Under extreme pressure, the legs are engineered to deform elastically rather than break, enhancing durability and safety. The extractor features removable screws, allowing adjustment between two or three legs to accommodate various extraction needs. Additionally, it includes a tip protector for use when no hole is present in the ball bearing shaft. The tool is electrolytically nickel-coated, offering resistance to corrosion and extending its service life.
- Self-centering design for simultaneous movement of all legs
- Adjustable between two or three legs
- Tip protector for use without a hole in the shaft
- Electrolytic nickel coating for corrosion resistance
Technical Specifications:
- Maximum Opening: 310 mm
- Arm Length: 300 mm
- Maximum Force: 10 tons
Materials:
- Nickel-plated forged steel
Dimensions:
- Opening: 310 mm
- Length: 300 mm
Compatibility Information:
Suitable for extracting pulleys, gears, ball bearings, and similar components from shafts or axles.
