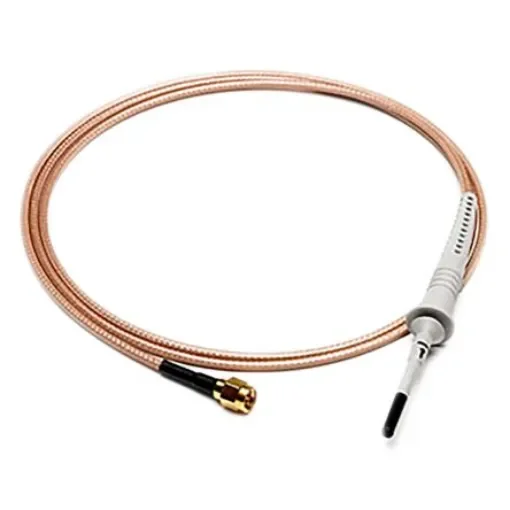

Pico Technology TA061 Oscilloscope Probe, Voltage Type, 1.5GHz, 1:10, SMA Connector
High-performance 1.5GHz voltage oscilloscope probe for precise RF measurements.
Manufacturer part number: TA061
Probe Type = Voltage
Attenuation = 1:10
Bandwidth = 1.5GHz
Maximum Common Mode Input Voltage = 12V
Connector Type = SMA
Model Number p = TA061
Number of Probes = 1
Safety Category = 12V
Rise Time = 240ps
Pico 1.5GHz Low Impedance Passive Probe TA061, 10:1 with SMA. Pico TA061 is a low-impedance, low-capacitance probe designed for use with oscilloscopes that have 50O input impedance and SMA input connectors. Applications include digital communications and RF design. Narrow 2.5 mm diameter at the probe tip New IC contact system for 0.5 to 1.27 mm pitch Interchangeable spring contact tip Ideal for measurements of SMT components Coaxial design Input resistance 500O Input capacitance 2pF Input coupling of the measuring instrument 50O System bandwidth (–3dB) 1.5GHz Rise time (10% – 90%) 240ps Rated voltage 12 V DC including AC pk Cable length 1.3m
