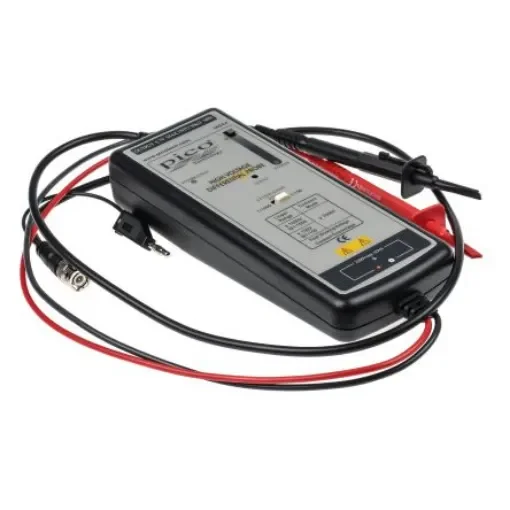

Pico Technology TA Series TA044 Oscilloscope Probe, Differential Type, 70MHz, 1:100, 1:1000, BNC Connector

Pico Technology Oscilloscope ProbeThe Pico Technology TA044 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±7000V. It can be used with a signal speed of up to 70Hz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.Features and BenefitsBandwidth is DC to 70MHz (–3dB) Attenuation ratio is 100:1/1000:1 Accuracy is ±2% Input impedance is 10Mohm ll10pF each side to ground Differential range is (100:1) ±700V (DC + peak AC) or 700VRMS Maximum differential is (1000:1) ±7000V (DC + peak AC) or 5000VRMS Common mode range is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1) Absolute maximum voltage is ±7000V (DC + peak AC) or 2500VRMS (100:1 & 1000:1) Absolute maximum voltage is (differential mode) ±7000V (DC + peak AC) or 5000VRMS (100:1 & 1000:1) Swing is ±7V into 50kohm load Offset (typical) is <±5mV Noise (typical) is 0.9mVRMS Source impedance is (typical) 50ohm CMRR (typical) is 80dB at 6Hz and 50dB at 1MHz Ambient operating temperature ranges between -10°C and 40°C Power requirement 4xAA cells or 6VDC/200mA mains adaptor or regulated 9VDC/120mA mains adaptorApplicationsSafe measurement in power circuit Acquisition of low speed balanced differential signals found in serial communications buses Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays Signals in the milliV range from sensors and other instrumentationCertificationsIEC-1010.2-031 CAT I certified Pollution Degree 2 certified
