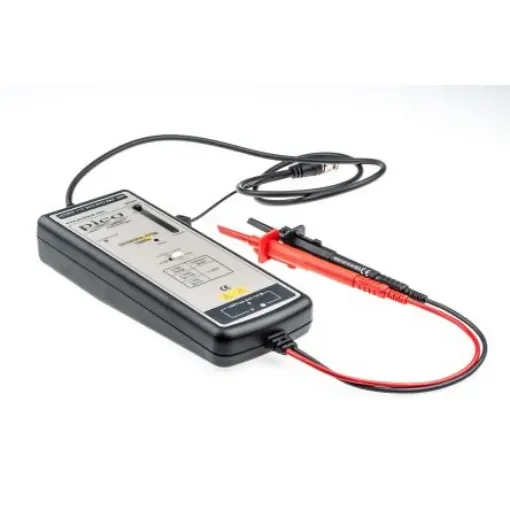

Pico Technology TA Series TA043 Oscilloscope Probe, Differential Type, 100MHz, 1:10, 1:100, BNC Connector

Pico Technology Oscilloscope ProbeThe Pico Technology TA043 oscilloscope probe is an active differential probe, suitable for high common-mode voltage measurement applications up to ±7000V. It can be used with a signal speed of up to 100MHz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high voltage differential measurements.Features and BenefitsBandwidth is DC to 100MHz (–3dB) Attenuation ratio is 10:1/100:1 Accuracy is ±2% Input impedance is 4Mohm ll7pF each side to ground Differential range is (10:1) ±70V (DC + peak AC) or 70VRMS Maximum differential is (100:1) ±700V (DC + peak AC) or 500VRMS Common mode range is ±700V (DC + peak AC) or 500VRMS (10:1 & 100:1) Absolute maximum voltage is ±1000VRMS CATIII 10:1 & 100:1) Swing is ±7V into 50Kohm load Offset (typical) is <±5mV Noise (typical) is 0.9mVRMS Source impedance is 50 CMRR (typical) is 85dB at 50Hz and 55dB at 1MHz Ambient operating temperature ranges between -10°C and 40°C Power requirement 4xAA cells or 6VDC/200mA mains adaptor or regulated 9VDC/120mA mains adaptorApplicationsSafe measurement in power circuit Acquisition of low speed balanced differential signals found in serial communication buses Transients in switching power supplies, inverters and motor drives, electronic ballasts and CRT displays Signals in the milliV range from sensors and other instrumentationCertificationsIEC-1010.1 IEC-1010.2-031 CAT III Pollution Degree 2.
