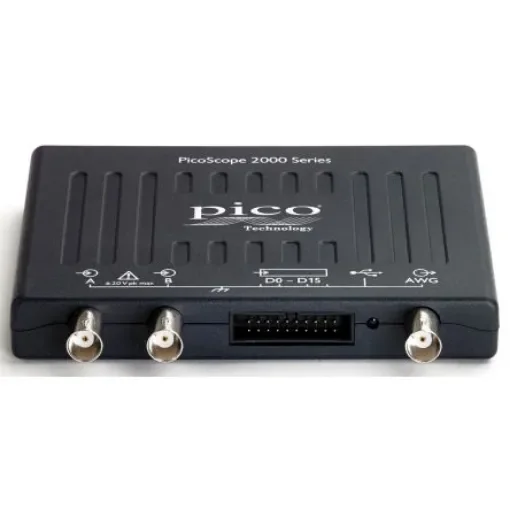

Pico Technology PQ008 2205A MSO PicoScope 2000 Series, 25MHz PC Based Oscilloscope, 2 Analogue Channels, 16 Digital - PicoScope 2205A MSO

EN 61010-1:2010. USB 2.0 cable, passive probes (x2), digital input cable, logic test clips (x20), quick start guide and software. Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately. 5. PicoScope 2205A MSO 2-channel 25 MHz PC Oscilloscope. PicoScope 2205A MSO is a 25 MHz 2-channel mixed signal oscilloscope which also functions as a 16-channel logic analyser, sampling at a maximum of 500 MS/s. It features built-in spectrum analysis, function/arbitrary waveform generation and serial bus analysis. The 2205A MSO has a buffer memory of 48 kS and a 1 MHz AWG signal generator. Automatic measurements are available in scope mode and in spectrum mode. Serial decoding is a standard PicoScope feature and includes SPI, I2C, FlexRay, CANbus, LINbus and ARINC. The 2205A MSO offers excellent waveform visualisation and measurement, as well as fast waveform update rates. It delivers the performance needed for advanced analysis of waveforms, including serial decoding and frequency plots. The PicoScope 2205A MSO takes advantage of the computing, display and communication power of an attached laptop or desktop PC. Features and Benefits. Powerful, portable, compact 2 analog/16 digital channels 25 MHz bandwidth Built-in arbitrary waveform generator USB connected and powered Serial decoding/FFT advanced waveform analysis included Excellent signal integrity Dimensions 130 x 104 x 18.8 mm Weight ;200 g Input capacitance is 8pF Sampling rate is 500MSa/s with 48KS buffer Input impedance is 200Kohm. Areas of Application. Design Test Education Service Monitoring Fault-finding Repair
