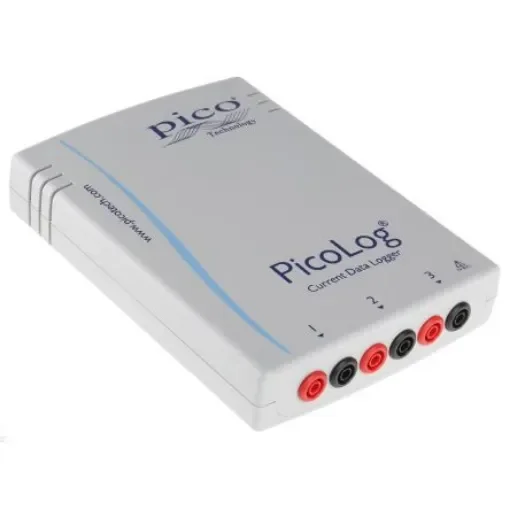

Pico Technology PicoLog CM3 Current & Voltage Data Logger, Ethernet, USB, 3 Input Channel(s) - PICOLOG CM3 & 3CC

Number of Input Channels = 3
Measurement Parameters = Current, Voltage
Interface Type = Ethernet, USB
Data Logger Type = Current & Voltage
Maximum Voltage Measurement = 1V ac
Power Source = USB
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Maximum Current Measurement = 200A
Includes = 3 Current Clamp, Softwaremm

Pico Technology Data LoggerThe Pico Technology CM3 is a 3-channel USB/Ethernet current data logger. It is ideal for recording data from both, single-phase and three-phase AC supplies. The USB and Ethernet interfaces allow the logger to be used as a USB-only device or as a USB-powered device with Ethernet interface, or as a Power-over-Ethernet (PoE) device. Using the Ethernet interface, the PicoLog CM3 can be located anywhere on a LAN or on the internet. This logger includes a flexible, expandable Picolog software and is also supplied with three AC current clamps. It is used in building machinery.Features and BenefitsHigh accuracy and low noise Up to 1 second per conversion Maximum output impedance is 1Kohm Multiple units can be running on a single PC Supplied clamps enable recording of 3 signals Wide current range covering 0A to 200A Dual USB/Ethernet interface ensures a problem-free installation Operating temperature ranges between 0°C and 50°CApplicationsMains current monitoring Three-phase load balancing Long-term energy use recordingCertificationsIEC1010-1 (1995) EN61010-1 (2001) Category II 600V Category III 300 V
