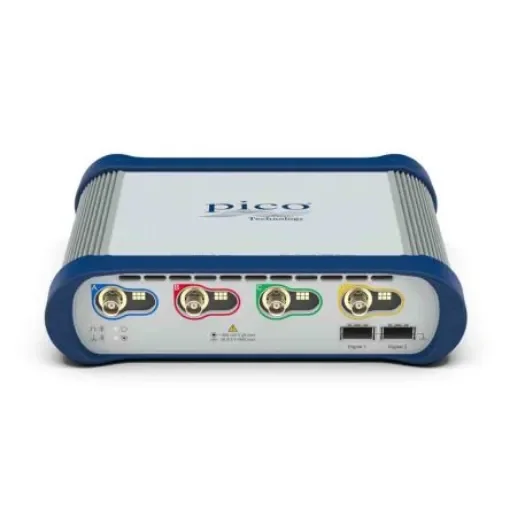

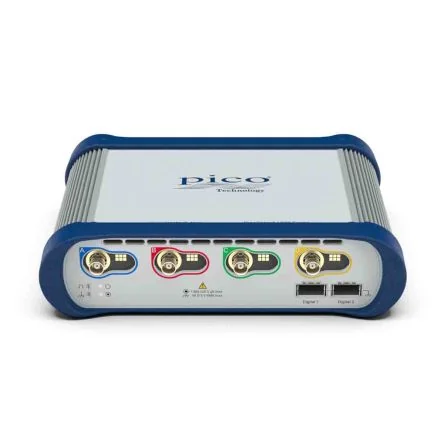

Pico Technology 6424E PicoScope 6000E Series, 500MHz PC Based Oscilloscope, 4 Analogue Channels - PicoScope 6424E

Bandwidth = 500MHz
Number of Analogue Channels = 4
Oscilloscope Type = PC Based
Interface = USB
Series = PicoScope 6000E
Power Source = AC AdaptermV/div

The Pico Technology PicoScope 6404E Oscilloscope provides four 500 MHz analog channels sampling at up to 5 GS/s at 8 bits vertical resolution. Deep memory capture of up to 4 GS provides high timing resolution over extended time periods which can be segmented over many time-stamped triggers. A 50 MHz arbitrary/function generator output is included as standard, and 8 or 16 digital channels are enabled with the optional TA369 8 channel MSO pods ((201-1828) 201-1828). Like all PicoScopes the 6000E series connects to the users own PC running PicoScope 6 Software which runs on Windows, Mac or Linux operating systems and supports multiple touchscreen displays. PicoScope 6 software is feature packed but easy to use, and includes many serial bus protocol decodes as standard. Free upgrades are issued as enhancements are introduced. 4x P2056 500 MHz passive probes are included. Software development kit (SDK) free to download from Pico website.8 or 16 digital MSO channels (optional) PicoScope 6 software and SDK included Advanced triggers: pulse width, runt pulse, windowed, logic and dropout
