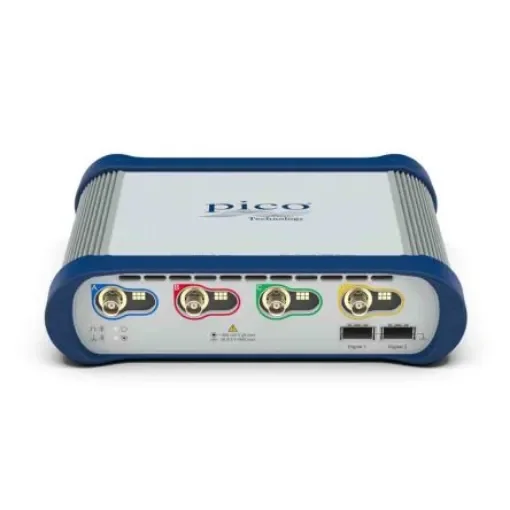

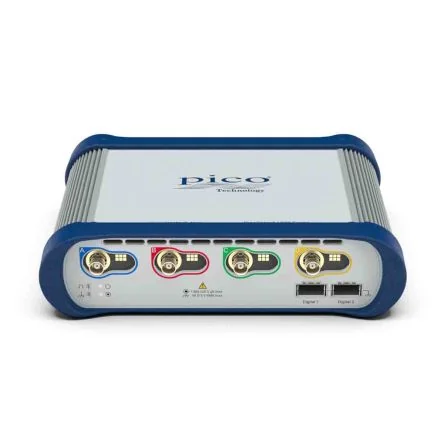

Pico Technology 6403E PicoScope 6000E Series, 300MHz PC Based Oscilloscope, 4 Analogue Channels - PicoScope 6403E

Power Source = AC Adapter

The Pico Technology PicoScope 6403E Oscilloscope provides four 300 MHz analog channels sampling at up to 5 GS/s at 8 bits vertical resolution. Deep memory capture of up to 1 GS provides high timing resolution over extended time periods which can be segmented over many time-stamped triggers. A 50 MHz arbitrary/function generator output is included as standard, and 8 or 16 digital channels are enabled with the optional TA369 8 channel MSO pods ((201-1828) 201-1828). Like all PicoScopes the 6000E series connects to the users own PC running PicoScope 6 Software which runs on Windows, Mac or Linux operating systems and supports multiple touchscreen displays. PicoScope 6 software is feature packed but easy to use and includes many serial bus protocol decodes as standard. Free upgrades are issued as enhancements are introduced. 4x P2036 300 MHz passive probes are included. Software development kit (SDK) free to download from Pico website.8 or 16 digital MSO channels (optional) PicoScope 6 software and SDK included Advanced triggers: pulse width, runt pulse, windowed, logic and dropout
