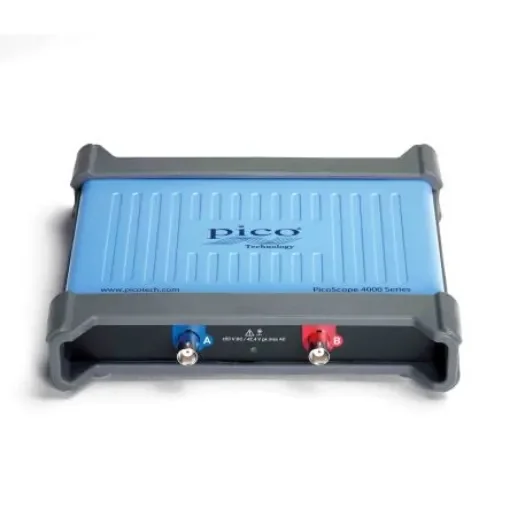

Pico Technology 4224A PicoScope 4000A Series, 20MHz PC Based PC Oscilloscope, 2 Analogue Channels - PicoScope 4224A

Bandwidth = 20MHz
Number of Analogue Channels = 2
Oscilloscope Type = PC Based
Interface = USB
Memory Depth = 256Mpts
Sample Rate Random = 80 Msps
Series = PicoScope 4000A
Power Source = USBV/div

2 Channel high-resolution deep-memory oscilloscopeThe PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit trigger able signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC.All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.Features and benefits2 channels 20 MHz bandwidth 12-bit resolution 256 MS capture memory 80 MS/s sampling rate 1% DC accuracy 10 000 segment waveform buffer 14-bit resolution signal generator SuperSpeed USB 3.0 interface Split-screen waveform viewing Up to 70 dB SFDR Advanced digital triggering Serial bus decoding PicoScope and PicoSDK software includedSupplies with/Kit contains :USB 3.0 cable USB Oscilloscope Quick Start Guide Two 10:1/1:1 switched probesWhat other Oscilloscopes are available in this Pico range?PiscoScope 4424A & 4824A
