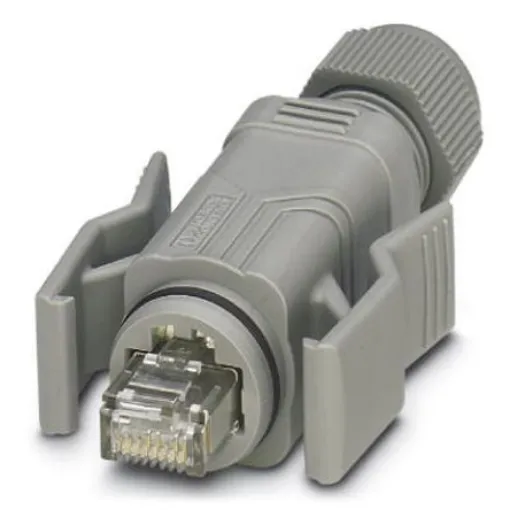

Phoenix Contact VS-08 Series Male RJ45 Connector, Cable Mount, Cat5 Straight 8 -Way - 1658493
Reliable RJ45 connector for Cat5 cables, featuring IP67 protection and quick installation.
Manufacturer part number: 1658493
GTIN: 4046356163163
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat5
Mounting Type = Cable Mount
Number of Ways = 8
Shield Type = Shielded
Orientation = Straight
IP Rating = IP67
Length = 77mm
Width = 22.8mm
Depth = 37mm
Series Number = VS-08-RJ45-5-Q/IP67-BK
Contact Material = Copper Alloy
Contact Plating = Gold over Nickel
IP67 and IP20 RJ45 Quickon Plugs. From Phoenix Contact, a series of RJ45 connectors from the Quickon range. The professional grade connectors benefit from IDC fast connect termination making them ideal for quick installation applications. The RJ45 connectors are housed in tough polyamide material and are IP20 and IP67 rated. The connectors have straight able exits and have a cable acceptance range of 4.5 mm to 8.5 mm. Part number ; 921-0108 921-0108 IP20 with 4.5 mm to 8.0 mm cable range Part number ; 921-0199 921-0199 IP67 with 5.0 mm to 8.5 mm cable range
