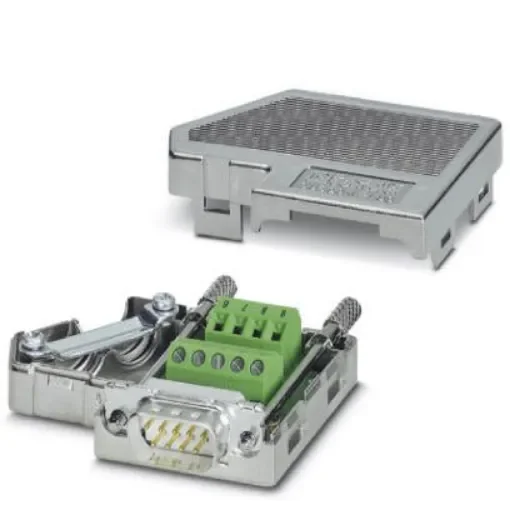

Phoenix Contact SUBCON-PLUS 9 Way 35 ° Cable Mount D-sub Connector Plug - 2744018

Number of Contacts = 9
Gender = Male
Body Orientation = 35 °
Mounting Type = Cable Mount
D-Sub Shell Size = D
Current Rating = 100mA
Housing Material = Metal Plated ABS
Voltage Rating = 50.0 V
Length = 60mm
Width = 16mm
Depth = 44mm
Series = SUBCON-PLUSmm
Minimum Operating Temperature = -20°C

Phoenix Contact SUBCON-PLUS RS-485 D-Sub Connectors. SUBCON-PLUS 9 position field bus D-sub connectors with two cable entries and a screw terminal block for each cable enabling fieldbus systems to be built with RS-485 interfaces. The terminal blocks can be placed in the upper or lower part of the connector housing allowing cable entry from the left or right. These SUBCON-PLUS field bus RS-485 d-sub connectors have a high transmission speed, a high level of EMC with metallized ABS housings for EMI shielding and accept a cable cross section range of 6 to 10mm ;sup>2 ;/sup> Stock number ; 648-3489 648-3489 is a 9 way d-sub socket with two 35° angled cable entries for Modbus, Modbus-PLUS, BITBUS, ARCNET, MULT/MININET(B ;R), SYSTEM 2003 (B ;R), P-NET Stock number ; 324-9371 324-9371 is a 9 way d-sub socket with two 35° angled cable entries for SUCONET K1, K2 (EATON/Moeller), S-BUS (Saia) and J-BUS (Merlin Gerin) Stock number ; 324-9400 324-9400 is a 9 way d-sub socket with two 35° angled cable entries for Modbus and CEGELEC Stock numbers ; 801-8933 801-8933 (pin) and ; 801-8964 801-8964 (socket) are 9 way d-sub connectors with two 35° angled cable entries for universal assignment. For short mounting screw see stock number ; 801-8961 801-8961 For screwdriver see stock number ; 390-9663 390-9663
