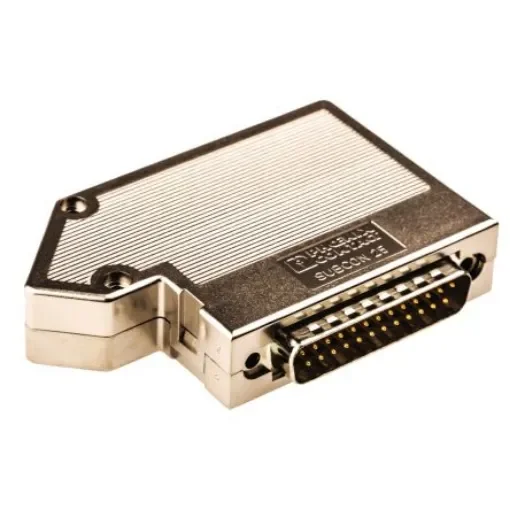

Phoenix Contact SUBCON 25 Way Right Angle D-sub Connector Plug, 2.77mm Pitch - 2761622

Number of Contacts = 25
Gender = Male
Body Orientation = Right Angle
Mounting Type = PCB Mount
Pitch = 2.77mm
D Connector Type = D-Subminiature Connector
Termination Method = Screw Terminal
Current Rating = 100mA
Housing Material = ABS
Voltage Rating = 50.0 V
Length = 78.7mm
Width = 16mm
Depth = 49.5mm
Series = SUBCONmm
Minimum Operating Temperature = -20°C

SUBCON 25/M-SHA right angled, D-SUB connector from Phoenix Contact. The 25-contact, male connector is part of the SUBCON series for universal use. The ideal INTERBUS and all connections are 1:1 on the screw terminal block.Features and Benefits• 35° angled cable entry and an internal connection unit which can be turned around enabling cable insertion from the left or the right and a screw connection • Easily assembled under field conditions due to knurled screws • IP20 • Metal plated ABS housing • Operating temperature of -20°C to +75°C • High level of EMC • Change to the D-SUB orientation through a reversible connection block
