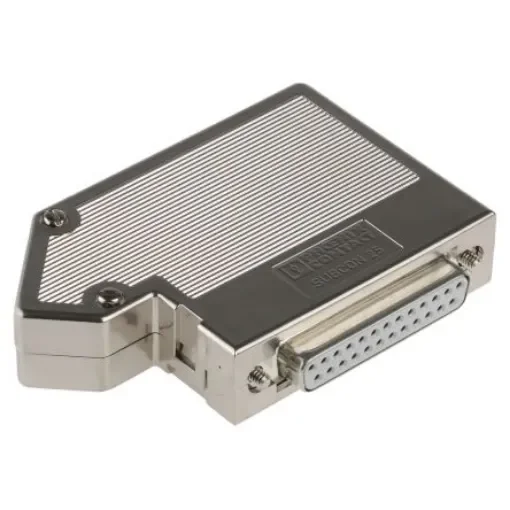

Phoenix Contact SUBCON 25/F-SH 25 Way Right Angle D-sub Connector Socket, 2.77mm Pitch - 2761619

Number of Contacts = 25
Gender = Female
Body Orientation = Right Angle
Mounting Type = PCB Mount
Pitch = 2.77mm
D Connector Type = D-Subminiature Connector
Termination Method = Screw Terminal
Current Rating = 100mA
Housing Material = ABS
Voltage Rating = 50.0 V
Length = 78.7mm
Width = 16mm
Depth = 49.5mm
Series = SUBCON 25/F-SHmm
Minimum Operating Temperature = -20°C

D-Sub BUS connector, SUBCON 25/F-SH Phoenix Contact The 2761619 from Phoenix contact is a standard D-sub bus connector with 25 positions. This D-sub connector is a female connector and thanks to its hard metal housing and effortless assembly, makes great use for field conditions. The 2761619 supports a variety of signals including Modbus, RS-232, RS-422 and RS-485 for a multitude use and cables can also be flexible in terms of cable entry selection. The shell itself had a right-angle design and is apart of the SUBCON series for universal use. This D-sub connector is ideal for INTERBUS and all connections are 1:1 on the screw terminal block located in the housing. Features and benefits: 35° angled cable entry and an internal connection unit which can be turned around enabling cable insertion from the left or the right and a screw connection Easily assembled under field conditions due to knurled screws Metal plated ABS housing Operating temperature of -20°C to +75°C High level of EMC Change to the D-SUB orientation through a reversible connection block Backed by an ATEX EX rating allowing installation in potentially explosive areas. What is a d-sub connector? D-sub connectors or D-subminiature connectors as theyre commonly called are D-shaped connections that can contain a variety of pins and come in a variety of sizes. D-Sub connectors are typically used in connecting wires to PCBs to transfer a multitude of signal types and thanks to their screw method of connection theyll provide a robust and long-lasting strong connection.
