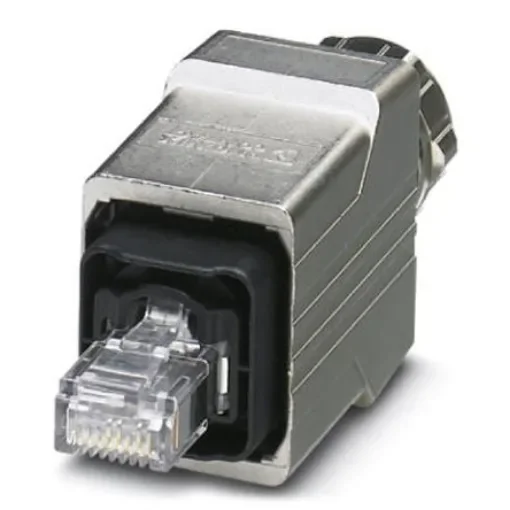

Phoenix Contact QUICKON Series Male RJ45 Connector, Cable Mount, Cat5 Straight 4 -Way - 1403366
Reliable RJ45 connector for Cat5 Ethernet with a durable cable mount design.
Manufacturer part number: 1403366
GTIN: 4046356708319
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat5
Mounting Type = Cable Mount
Number of Ways = 4
Shield Type = Shielded
Orientation = Straight
IP Rating = IP65, IP67
Length = 68.8mm
Width = 22mm
Depth = 30mm
Series = QUICKON
Contact Material = Copper Alloy
Contact Plating = Gold over Nickel
RJ45 Quickon Connector Inserts. From Phoenix Contact, a series of push pull connector inserts from the QUICKON range of RJ45 connectors. These RJ45 connectors have IDC fast connect terminals with copper alloy contacts. This professional range of RJ45 connectors all have diecast zinc housings (apart from stock number ; 921-0183 921-0183 ) which has PA-GF housing material. The RJ45 connector inserts are available in 4 and 8 position options have an external cable diameter from 5 mm to 8 mm. Part number ; 921-0102 921-0102 has metal EMC shielding. Part number ; 921-0183 921-0183 is also 1 Gbit/s.
