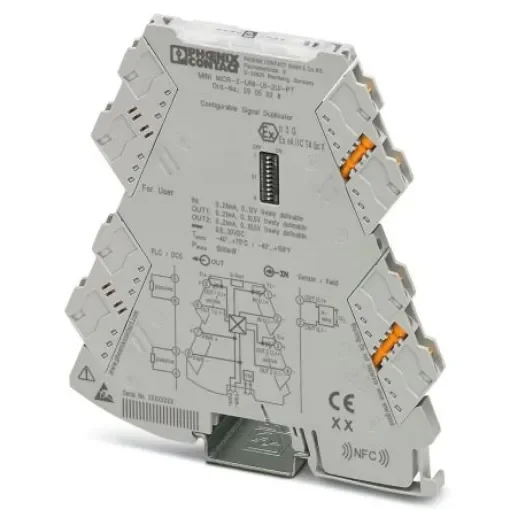

Phoenix Contact MINI MCR Series Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 24V dc Supply, ATEX - 2905028

MINI MCR - Signal Duplicators. The 2905026 from Phoenix Contact is a 4-way, configurable signal duplicator. This module can process inputs from 0mA – 24mA and an input voltage of 0V – 12V, while outputting 0mA – 21mA and an output voltage of 0V – 10.5V. The 2905026 has plug-in technology to allow for an easier setup and is approved with an ATEX zone-2 installation rating. The module can be configured with either the easy to access DIP switch on the side, or can be programmed via an S-PORT using FDT/DTM. Features and benefits:. ;ul> ;li>Freely adjustable inputs and outputs ;/li> ;li>ATEX Zone-2 installation approval (nA) ;/li> ;li>Reinforced isolation in alignment with IEC 61010-1 ;/li> ;li>Supply voltage range 9.6 V DC up to 30 V DC ;/li> ;li>Power from a TBUS Din rail connector ;/li> ;/ul>. Applications:. ;ul> ;li>Electrical isolation ;/li> ;li>Conversion ;/li> ;li>Amplification ;/li> ;li>Filtering of standard signal ;/li> ;/ul>. Accessories:. TBUS Din rail connector – ; 489-2825 489-2825 USB Programmer (S-PORT) – ; 801-6107 801-6107
