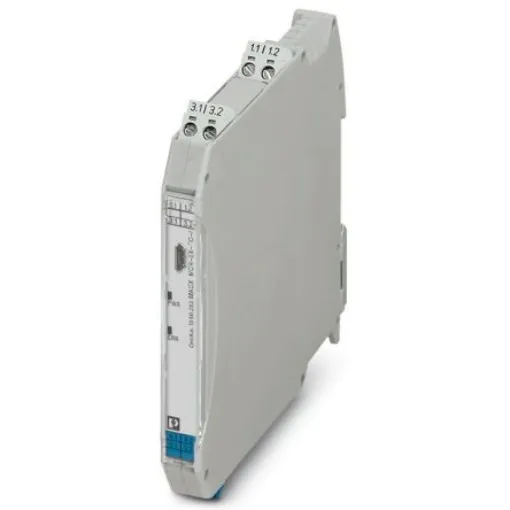

Phoenix Contact MACX MCR Series Signal Conditioner, Thermocouple, Voltage Input, Current Output, 24V dc Supply, ATEX - 1050233
High-accuracy signal conditioner for thermocouples in Ex areas, providing reliable 4-20 mA output.
Manufacturer part number: 1050233
GTIN: 4055626663463
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Ex i temperature transducer: converts signals from thermocouples installed in Ex areas and mV sources and transmits a 0/4…20 mA signal to a load in the safe area. Freely programmable. 3-way isolation, screw connection, SIL.Input for thermocouples and mV sources, intrinsically safe [Ex ia] IIC 4..20 mA or 20..4 mA output signal range High level of accuracy over the entire measuring range Configuration via software (Analogue-CONF or DTM) Safe electrical isolation between input, output, and supply High transmission accuracy Status and error indicator Power supply possible via DIN rail connector Housing width of 12.5 mm Screw connection available
