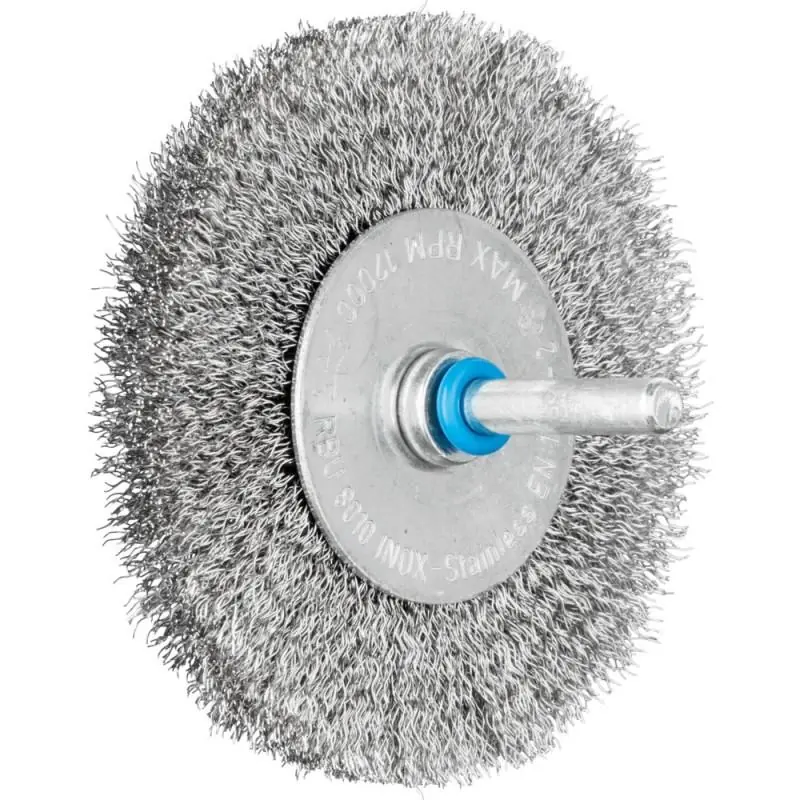

The PFERD Wheel Brush Crimped RBU 80x10 mm is designed for versatile applications including cleaning, derusting, smoothing, weld seam cleaning, light deburring, and removal of corrosion and paint. This brush features a crimped design with a 6 mm shank and 0.20 mm stainless steel wire, ensuring flexibility and durability.
- Material: Stainless steel wire (INOX)
- Wire Diameter: 0.20 mm
- Brush Diameter: 80 mm
- Brush Width: 10 mm
- Shank Diameter: 6 mm
- Filament Length: 19 mm
- Total Length: 50 mm
- Maximum RPM: 12,000 RPM
- Optimal RPM Range: 4,800 to 7,800 RPM
- Packaging: Industrial packaging
Technical Specifications
- Mounting System: Shank
- Filament Material: Stainless steel wire (INOX)
- Filament Length: 19 mm
- Total Length: 50 mm
- Maximum RPM: 12,000 RPM
- Optimal RPM Range: 4,800 to 7,800 RPM
- Packaging: Industrial packaging
Materials That Can Be Machined
- Aluminium
- Other non-ferrous metals
- Refractory materials
- Cobalt-based alloys
- Nickel-based alloys
- Nickel or titanium-based superalloys
- Hard non-ferrous metals
- Bronze
- Titanium
- Titanium alloys
- Soft titanium alloys
- Soft non-ferrous metals
- Stainless steel (INOX)
Applications
- Cleaning
- Deburring
- Derusting
- Paint stripping
- Removing heat discolouration
- Removing oxide layers
- Roughening
Advantages
- Highly flexible, enabling optimal adjustment to the workpiece contour
- Very good corrosion resistance
- Creates fine surfaces
Recommendations for Use
- Please observe the recommended rotational speeds
- For the best results, use a tool drive with a minimum output of 300 watts
Safety Notes
- When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm
