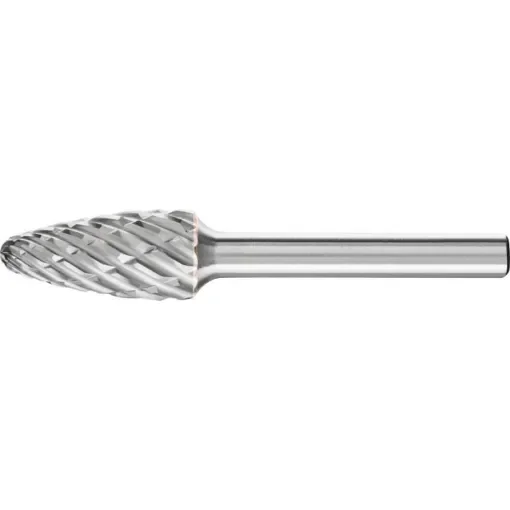

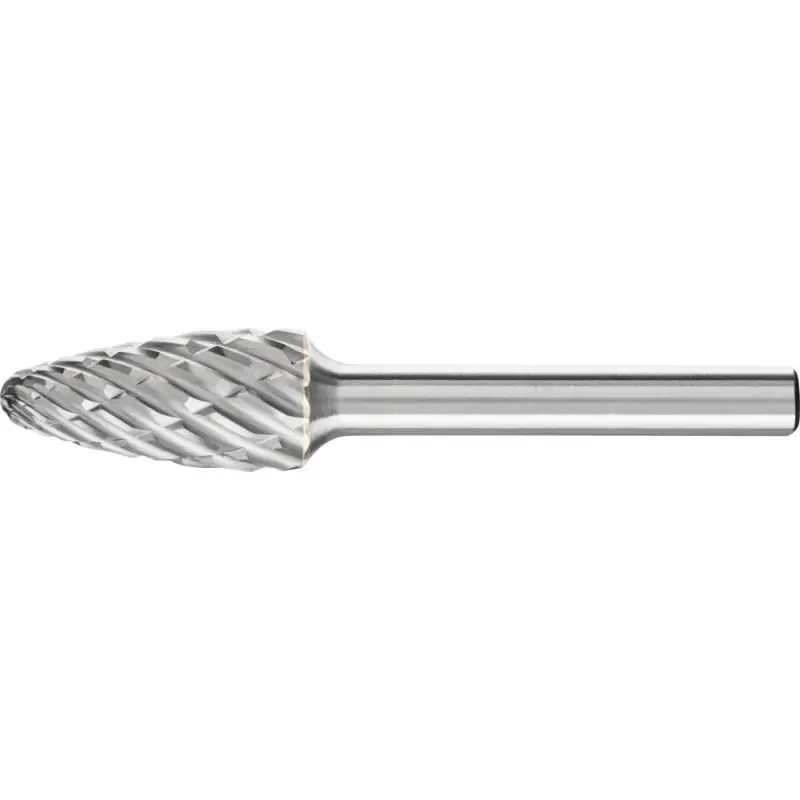

The PFERD Tungsten Carbide High-Performance Burr STEEL Tree Shape with Radius End RBF is engineered for efficient machining of steel and cast steel materials. Its innovative design offers enhanced aggressiveness and precise guidance, ensuring safe and accurate operations. The burr's exceptional stock removal rate significantly reduces processing time, making it an economically efficient choice for professionals.
- Innovative STEEL Cut: Provides up to 50% higher stock removal rate compared to conventional cross-cut burrs when used on steel and cast steel.
- Aggressive Cutting Action: Features large chips and excellent chip removal due to its unique tooth geometry.
- Reduced Thermal Load: Protects workpieces by minimizing thermal impact during operation.
- High Concentricity: Ensures impact-free working without creating chatter marks, thereby reducing tool and tool drive wear.
Technical Specifications
- Cut Type: STEEL
- Outer Diameter: 12 mm
- Shank Diameter: 6 mm
- Cutting Length: 25 mm
- Total Length: 65 mm
- Radius Corner Design: 2.5 mm
- Recommended RPM Range:
- For hardened, heat-treated steels over 1,200 N/mm²: 7,000 to 9,000 RPM
- For steels up to 1,200 N/mm²: 12,000 to 16,000 RPM
Materials That Can Be Machined
- Case-hardened steels
- Cast steel
- Hardened, heat-treated steels over 1,200 N/mm²
- Steel
- Steels up to 1,200 N/mm²
- Tool steels
Applications
- Cutting out holes
- Deburring
- Leveling
- Milling
- Surface work
- Work on weld seams
Drive Types
- Drive spindle
- Flexible shaft drive
- Robot
- Stationary machines
- Straight grinder
- Tool machine
