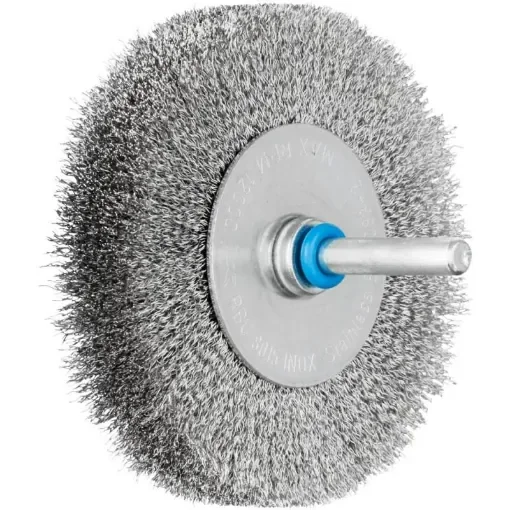

The PFERD POS Wheel Brush Wide Crimped RBU 80x20 is designed for medium-duty brushing tasks, including cleaning, deburring, derusting, paint stripping, removing heat discoloration, removing oxide layers, and roughening surfaces. It is particularly effective on workpieces with large surfaces and is suitable for both hand-held and automated applications.
- Filament Material: Stainless steel wire (INOX)
- Filament Diameter: 0.15 mm
- Brush Diameter: 80 mm
- Brush Width: 20 mm
- Filament Length: 20 mm
- Mounting System: Centre hole with variable diameters (10/12/14 mm)
- Maximum RPM: 10,000 RPM
- Optimal RPM Range: 4,000 to 6,500 RPM
- Packaging: POS packaging
Technical Specifications
- Material Compatibility: Aluminium, Bronze, Cobalt-based alloys, Hard non-ferrous metals, High-temperature-resistant materials, Nickel-based alloys (e.g., Inconel and Hastelloy), Nickel or titanium-based superalloys, Other non-ferrous metals, Soft titanium alloys (tensile strength up to 500 N/mm²), Stainless steel (INOX), Titanium, Titanium alloys
- Temperature Resistance: The stainless steel wire withstands temperatures up to 450°C.
- Corrosion Resistance: The wire quality 1.4310 (V2A) offers very good corrosion resistance, ensuring optimal tool life.
- Magnetic Properties: The wire may become ferromagnetic due to cold working, allowing it to be attracted by magnets. This change does not affect the quality or corrosion resistance of the filament.
Applications
- Cleaning
- Deburring
- Derusting
- Paint stripping
- Removing heat discoloration
- Removing oxide layers
- Roughening
Drive Types
- Drive spindle
- Flexible shaft drive
- Straight grinder
