Key Features:
- Innovative STEEL cut design for enhanced performance on steel and cast steel
- Increased aggressiveness and precise guidance for safe and efficient work
- High stock removal rate, reducing time and improving economic efficiency

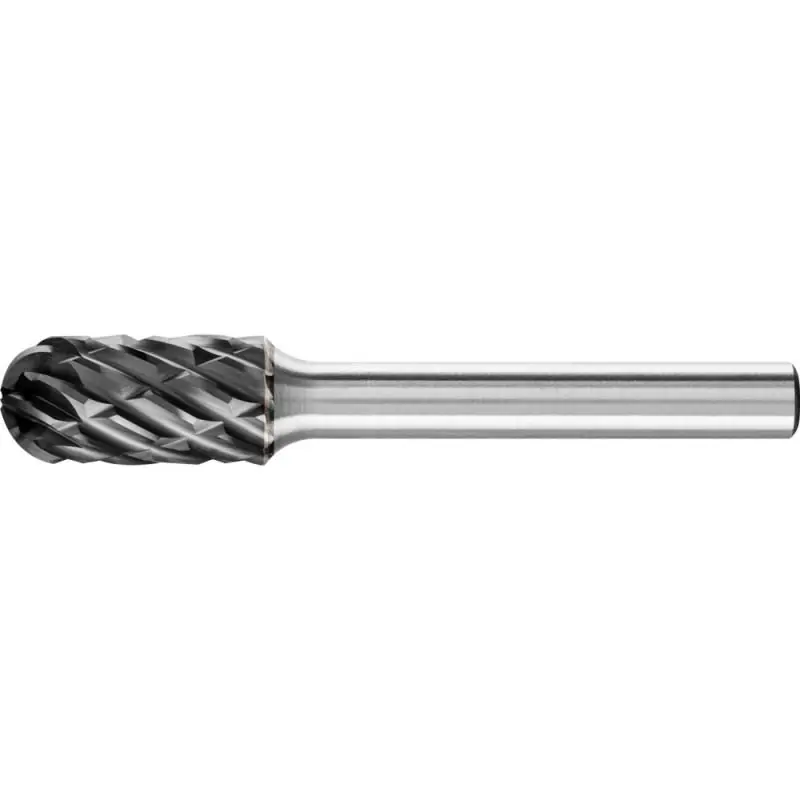

- Cylindrical burr with radius end according to DIN 8032
- Combination of cylindrical and ball-shaped geometries
Technical Specifications:
- Outer Diameter: 10 mm
- Cutting Length: 20 mm
- Shank Diameter: 6 mm
- Total Length: 60 mm
- Maximum RPM for Hardened Refined Steels (>1,200 N/mm²): 24,000 RPM
- Maximum RPM for Steels up to 1,200 N/mm²: 24,000 RPM
- Recommended RPM for Hardened Refined Steels (>1,200 N/mm²): 14,000 RPM
- Recommended RPM for Steels up to 1,200 N/mm²: 14,000 RPM
Materials That Can Be Machined:
- Steels up to 1,200 N/mm² (< 38 HRC)
- Steel up to 700 N/mm² (< 220 HB)
- Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
- Cast steel
- Tool steel
- High-speed steel
Dimensions:
- Outer Diameter: 10 mm
- Cutting Length: 20 mm
- Shank Diameter: 6 mm
- Total Length: 60 mm
Compatibility Information:
- Compatible with power tools equipped with a 6 mm collet
- Recommended for use on drives with a power of 300 watts or more
Additional Details:
- Designed for high-efficiency milling, leveling, deburring, creating openings, machining surfaces, and working on weld seams
- Protects workpieces through significantly lower thermal load
- Highly accurate concentricity enables impact-free working without creating chatter marks, reducing wear on the tool and tool drive
