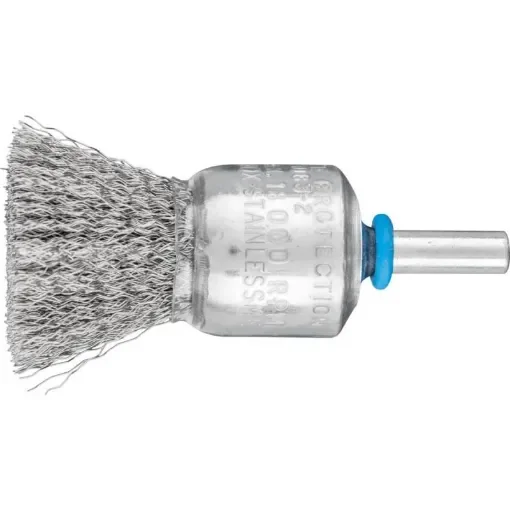

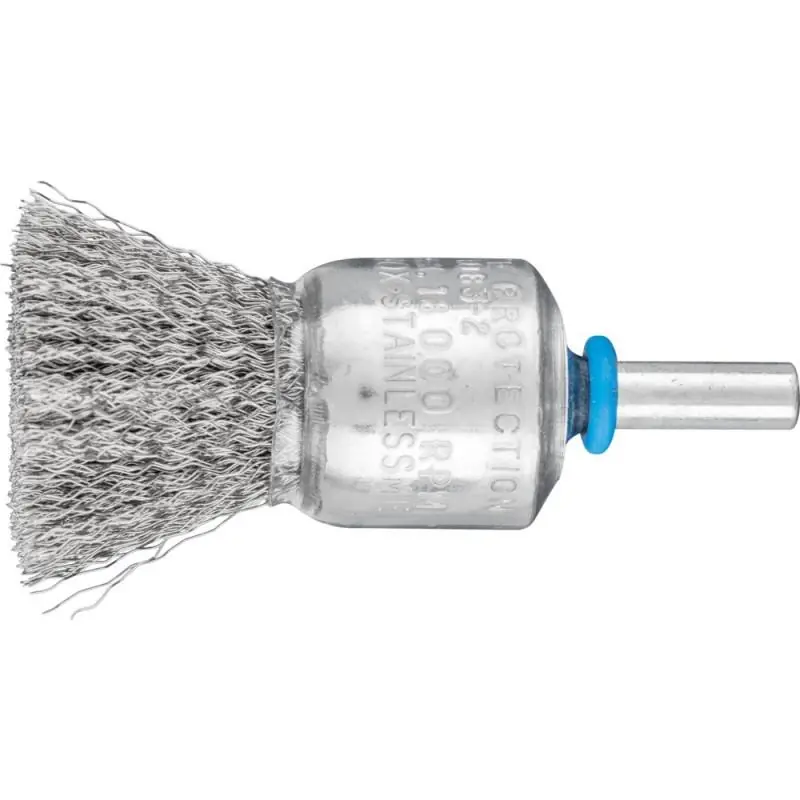

The PFERD End Brush Crimped PBU 20 mm is designed for light brushing tasks such as deburring, cleaning, and derusting. Its crimped design allows for optimal access to hard-to-reach areas, including drilled holes and cavities.
- Optimal Access: The filament spreads out upon rotation, providing access to hard-to-reach areas.
- Corrosion Resistance: Constructed with stainless steel wire (INOX), offering very good corrosion resistance.
- Temperature Resistance: Withstands temperatures up to 450 °C.
- Degreased Filament: The brush is degreased and does not leave any oil residue on the workpiece.
Technical Specifications
- Filament Material: Stainless steel wire (INOX)
- Filament Diameter: 0.5 mm
- Cup Diameter: 22 mm
- External Diameter: 20 mm
- Shank Diameter: 6 mm
- Filament Length: 25 mm
- Total Length: 70 mm
- Maximum RPM: 18,000 RPM
- Optimum RPM Range: 7,200 to 11,700 RPM
- Mounting System: Shank
- Packaging: Industrial packaging, 10 pieces per unit
Materials
- Aluminium
- Other non-ferrous metals
- Refractory materials
- Cobalt-based alloys
- Nickel-based alloys
- Nickel or titanium-based superalloys
- Hard non-ferrous metal
- Bronze
- Titanium
- Titanium alloys
- Soft titanium alloys
- Soft non-ferrous metal
- Stainless steel (INOX)
Compatibility Information
The PFERD End Brush Crimped PBU 20 mm is compatible with tools that accept a 6 mm shank, such as flexible shaft drives, power drills, and straight grinders.
