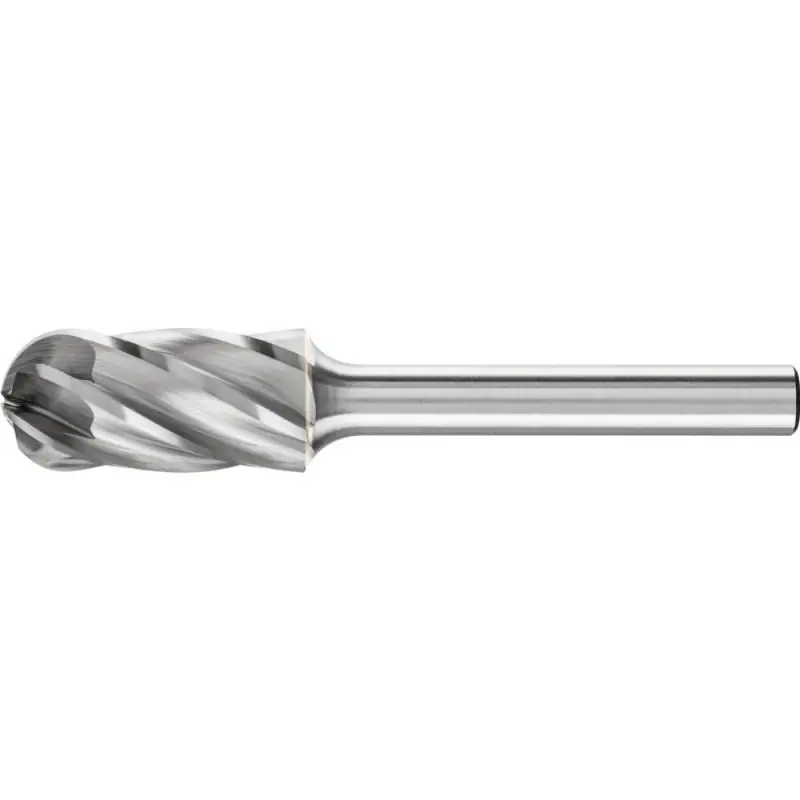

The PFERD Cylindrical Carbide Burr with Radius End, WRC Cut, 12 x 25 x 6 mm, is engineered for high-performance applications on non-ferrous metals and fiber-reinforced plastics. This burr features a combination of cylindrical and ball-shaped geometries, adhering to DIN 8032 standards, which enhances its versatility and efficiency.
- High Stock Removal Rate: Designed for rapid material removal, making it ideal for tasks such as deburring, leveling, milling, and surface work.
- Versatile Application: Suitable for cutting out holes, milling, and working on weld seams.
- Precision Engineering: The burr's design ensures accurate concentricity, enabling impact-free operation without creating chatter marks, thereby reducing wear on both the tool and the drive mechanism.
Technical Specifications
- Cut Type: WRC (Non-Ferrous)
- External Diameter: 12 mm
- Shank Diameter: 6 mm
- Cutting Length: 25 mm
- Total Length: 65 mm
- Recommended RPM:
- Hard Non-Ferrous Metals: 16,000 to 24,000 RPM
- Soft Non-Ferrous Metals: 12,000 to 16,000 RPM
- Thermoplastics and Fiber-Reinforced Plastics (GRP/CRP): 16,000 to 29,000 RPM
Materials That Can Be Machined
- Aluminium
- Hard Aluminium Alloys
- Soft Aluminium Alloys
- Hard Non-Ferrous Metals
- Bronze
- Copper
- Brass
- Zinc
- Plastics
- Thermoplastics
- Fiber-Reinforced Thermosetting Plastics (GRP, CRP)
Dimensions
- External Diameter: 12 mm
- Shank Diameter: 6 mm
- Cutting Length: 25 mm
- Total Length: 65 mm
Compatibility Information
This burr is compatible with various drive types, including flexible shaft drives, tool machines, robots, stationary machines, and straight grinders. For optimal performance, it is recommended to use drives with a power output of at least 300 watts when employing burrs with a 6 mm shank diameter.
