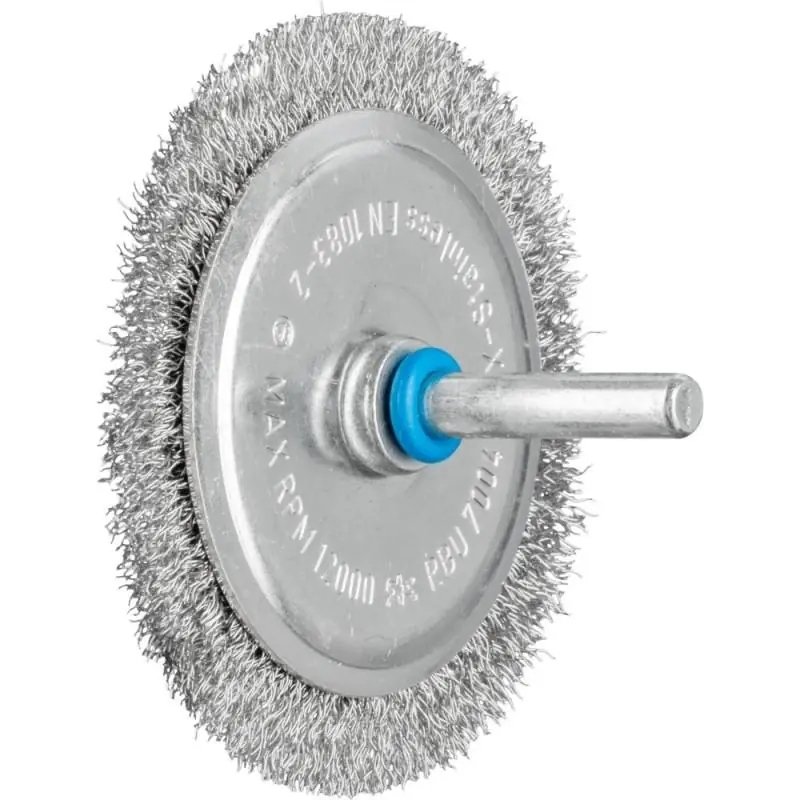

The PFERD Circular Brush 70/04 is a versatile tool designed for various applications, including cleaning, derusting, smoothing, weld seam cleaning, light deburring, and the removal of corrosion and paint. It is particularly effective on materials such as aluminum, other non-ferrous metals, refractory materials, cobalt-based alloys, nickel-based alloys, nickel or titanium-based superalloys, hard non-ferrous metals, bronze, titanium, titanium alloys, soft titanium alloys, soft non-ferrous metals, and stainless steel (INOX).
- Diameter: 70 mm
- Filament Material: Stainless steel wire (INOX)
- Filament Diameter: 0.2 mm
- Filament Length: 25 mm
- Total Length: 70 mm
- Shank Diameter: 6 mm
- Mounting System: Shank
- Maximum RPM: 15,000 RPM
- Recommended RPM Range: 6,000 to 9,800 RPM
- Color Code: Blue (indicating suitability for stainless steel applications)
Technical Specifications:
- Wire Quality: 1.4310 (V2A) stainless steel, offering excellent corrosion resistance and optimal tool life
- Temperature Resistance: Stainless steel wire withstands temperatures up to 450°C
- Magnetic Properties: The wire may become ferromagnetic due to cold working, but this does not affect its quality or corrosion resistance
Materials:
- Filament Material: Stainless steel wire (INOX)
- Shank Material: Steel
Dimensions:
- Brush Diameter: 70 mm
- Filament Diameter: 0.2 mm
- Filament Length: 25 mm
- Total Length: 70 mm
- Shank Diameter: 6 mm
Compatibility Information:
The PFERD Circular Brush 70/04 is compatible with tools equipped with a 6 mm shank, such as flexible shaft drives, power drills, and straight grinders. It is suitable for use on a wide range of materials, including various metals and alloys, making it a versatile choice for cleaning, deburring, and surface preparation tasks.
