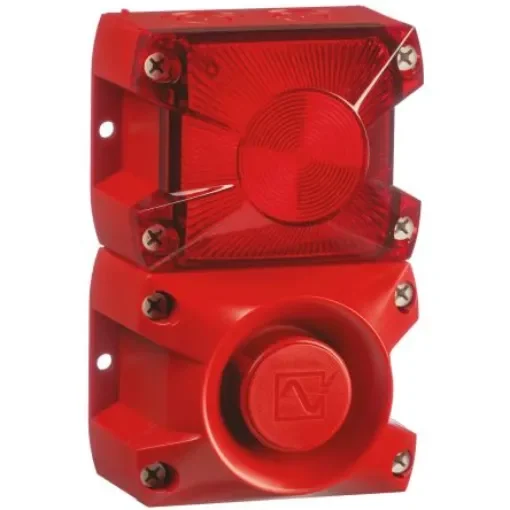

Pfannenberg PA X 1-05 Series Red Sounder Beacon, 24 V dc, Base Mount, 100dB at 1 Metre - 23311805000

Supply Voltage = 24 V dc
Lens Colour = Red
Mounting Style = Base Mount
Current Type = DC
Light Effect = Flashing
Sounder Type = Electronic
Decibels at 1 Metre = 100dB
Series = PA X 1-05
Bulb Type = Xenon
Housing Colour = Red
Number Of Tones = 80
Minimum Temperature = -40°C

UL, GL, VdS, EN 54-23, EN 54-3. Pfannenberg Patrol Flashing Sounder Beacons, PA-X-1-05. The Patrol PA-X-1-05 is an electronic sounder beacon with a 100 dB output and a flashing xenon light effect. It has 80 alarm tones and a 5J flash. The PA X-1-05 has a large signalling range and is safe and easy to install. Rectangular PC/ABS blend housing with PC lens Safe - an incorrect installation is virtually impossible Easy - significantly shorter assembly and installation times Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders Installation options with external lugs or internal holes Pre-wired sounder and light ex works Corresponding light intensity available for every sound pressure level 80 alarm tones, 100 dB Visual covering distance of 18 m IK08 Impact-proof housing IP66 protection according to EN 60529 5J flash 10 year warranty
