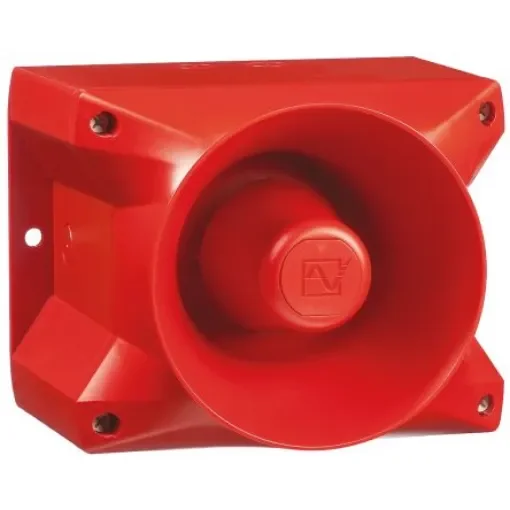

Pfannenberg PA 20 Series Panel Mount Electronic Sounder, 24 V dc, IP66, DC, 80-Tone - 23370630000
High-efficiency electronic sounder with 120 dB output and 80 alarm tones for reliable performance.
Manufacturer part number: 23370630000
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
IP Rating = IP66
Current Type = DC
Number Of Tones = 80
Housing Colour = Red
Mounting Style = Panel Mount
Application Type = Sounder
Maximum Decibel = 120dB
Series = PA 20
Base Length = 214mm
Minimum Temperature = -40°C
UL, GOST, GL, VdS, RS, EN 54-3. Pfannenberg Patrol Electronic Sounders, PA-20. The Patrol PA-20 is an electronic sounder with a 120 dB output and 80 alarm tones. It is extremely efficient and provides good penetration of acoustical obstacles, thus significantly reducing the required number of sounders. The PA-20 is safe and easy to install. Safe - an incorrect installation is virtually impossible Easy - significantly shorter assembly and installation times Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders 80 alarm tones, 120 dB Maximum covering distance of 178 m IK08 Impact-proof housing IP66 protection according to EN 60529 10 year warranty
