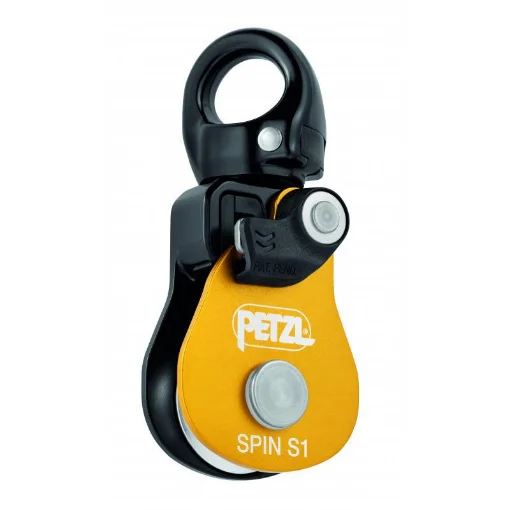

Key Features:
- Compact Design: Ideal for setting up haul or load deviation systems and tensioned highlines, especially in technical rescue scenarios where minimizing weight and bulk is crucial.
- Triple-Action Opening: The moving side plate opens quickly and easily, even when wearing gloves, facilitating efficient rope installation.
- Integrated Swivel: Allows the pulley to be oriented under load and accommodates up to two carabiners, enabling direct connection of ropes or slings for streamlined rigging.
- Visual Indicator: A red marker provides a clear visual warning when the moving side plate is unlocked, enhancing safety during operations.
- Rope Path Protection: Specially designed side plates safeguard the rope path, ensuring durability and smooth operation.
Technical Specifications:
- Weight: 145 g
- Certifications: CE EN 12278, NFPA 2500 Pulley Technical Use, UIAA, XF 494:FZL-H-Q 9.5/11
- Materials: Aluminum, stainless steel, nylon
- Minimum Rope Diameter: 7 mm
- Maximum Rope Diameter: 11 mm
- Sheave Type: Sealed ball bearings
- Sheave Diameter: 25 mm
- Maximum Working Load: 5 kN (2.5 kN per strand)
- Breaking Strength: 23 kN
- Efficiency: 91%
Materials:
- Aluminum: Provides a lightweight yet strong frame for the pulley.
- Stainless Steel: Ensures durability and resistance to corrosion, particularly in the sheave and swivel components.
- Nylon: Used in the side plates to protect the rope path and enhance the pulley’s overall performance.
Dimensions:
- Sheave Diameter: 25 mm
- Weight: 145 g
Compatibility Information:
- Rope Compatibility: Suitable for ropes with diameters ranging from 7 mm to 11 mm.
- Carabiner Compatibility: The swivel accommodates up to two carabiners, facilitating various rigging configurations.
- Accessory Compatibility: The openable swivel design allows compatibility with a wide range of products, including tripods, REEVE pulleys, and PAW rigging plates, reducing bulk during setup.
