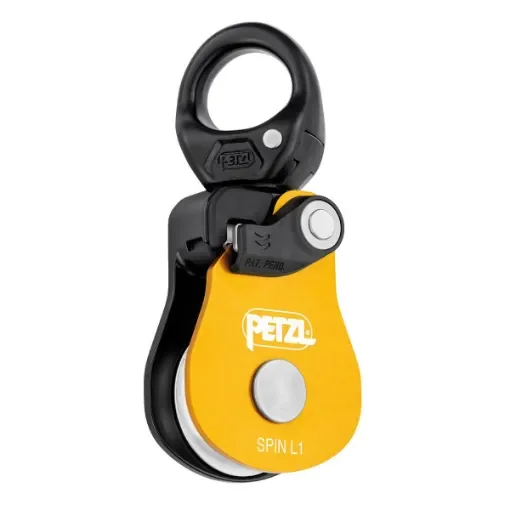

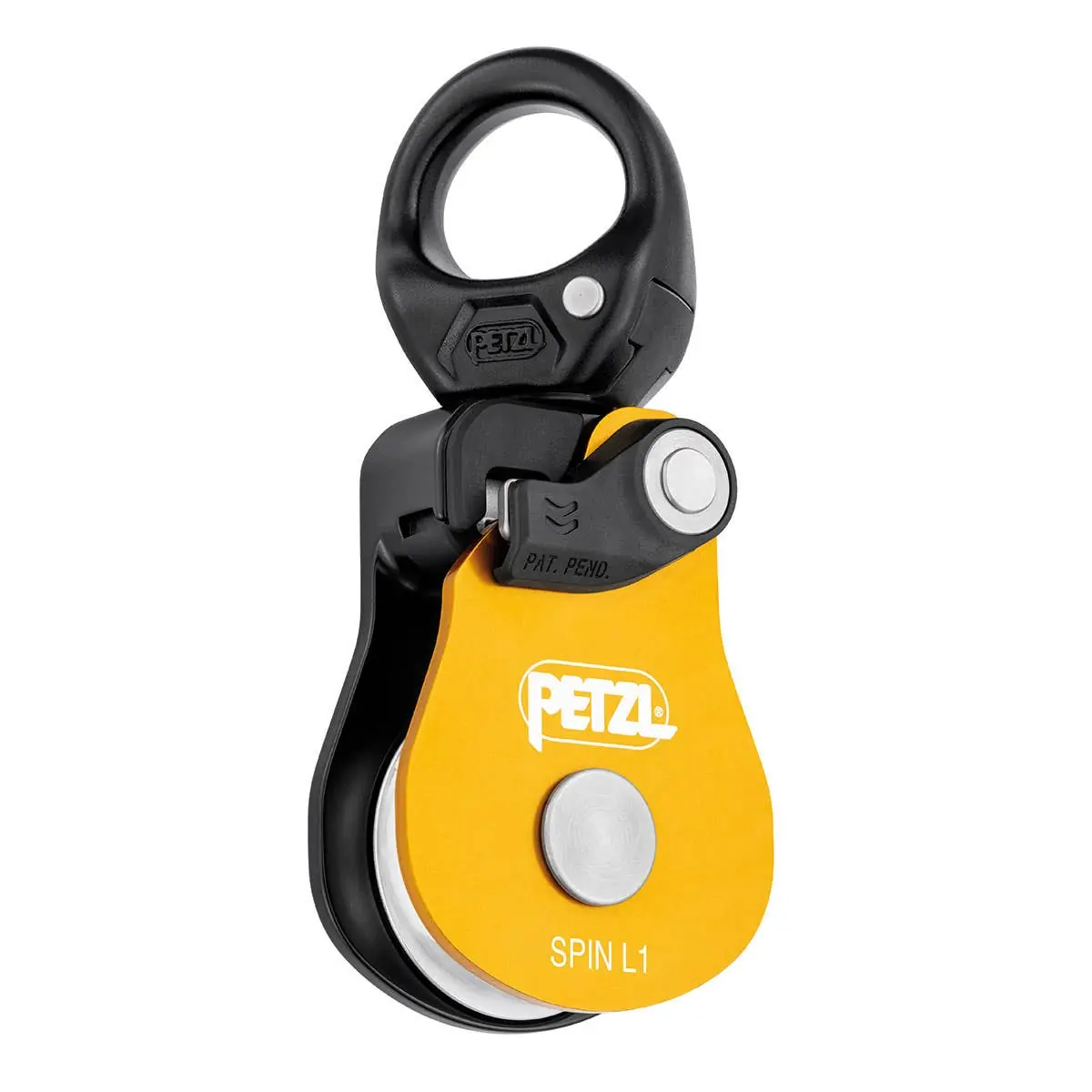

The Petzl SPIN L1 Pulley is a high-efficiency single pulley designed for simplicity in setting up hauling or load deviation systems and tyroleans. Its large-diameter sheave mounted on sealed ball bearings ensures excellent efficiency. The integrated swivel facilitates handling, allowing the pulley to be oriented under load and enabling direct connection of carabiners, ropes, or slings.
- Triple-Action Opening: The moving side plate opens quickly and easily, even when wearing gloves, allowing for efficient rope installation.
- Rope Installation Under Load: The pulley can be installed with the device connected to the anchor, streamlining setup.
- Visual Indicator: A red mark provides a visual warning when the moving side plate is unlocked, enhancing safety.
- Rope Path Protection: The special side plate design protects the rope path, ensuring durability and smooth operation.
- Swivel Functionality: The swivel allows the pulley to be oriented under load and accepts up to three carabiners, facilitating maneuvers with ropes and slings.
Technical Specifications:
- Weight: 290 g
- Materials: Aluminum, stainless steel, nylon
- Minimum Rope Diameter: 7 mm
- Maximum Rope Diameter: 13 mm
- Sheave Type: Sealed ball bearings
- Sheave Diameter: 38 mm
- Maximum Working Load: 8 kN
- Breaking Strength: 36 kN
- Efficiency: 95%
Certifications:
- CE EN 12278
- NFPA 1983 Pulley General Use
- UIAA
- UKCA
