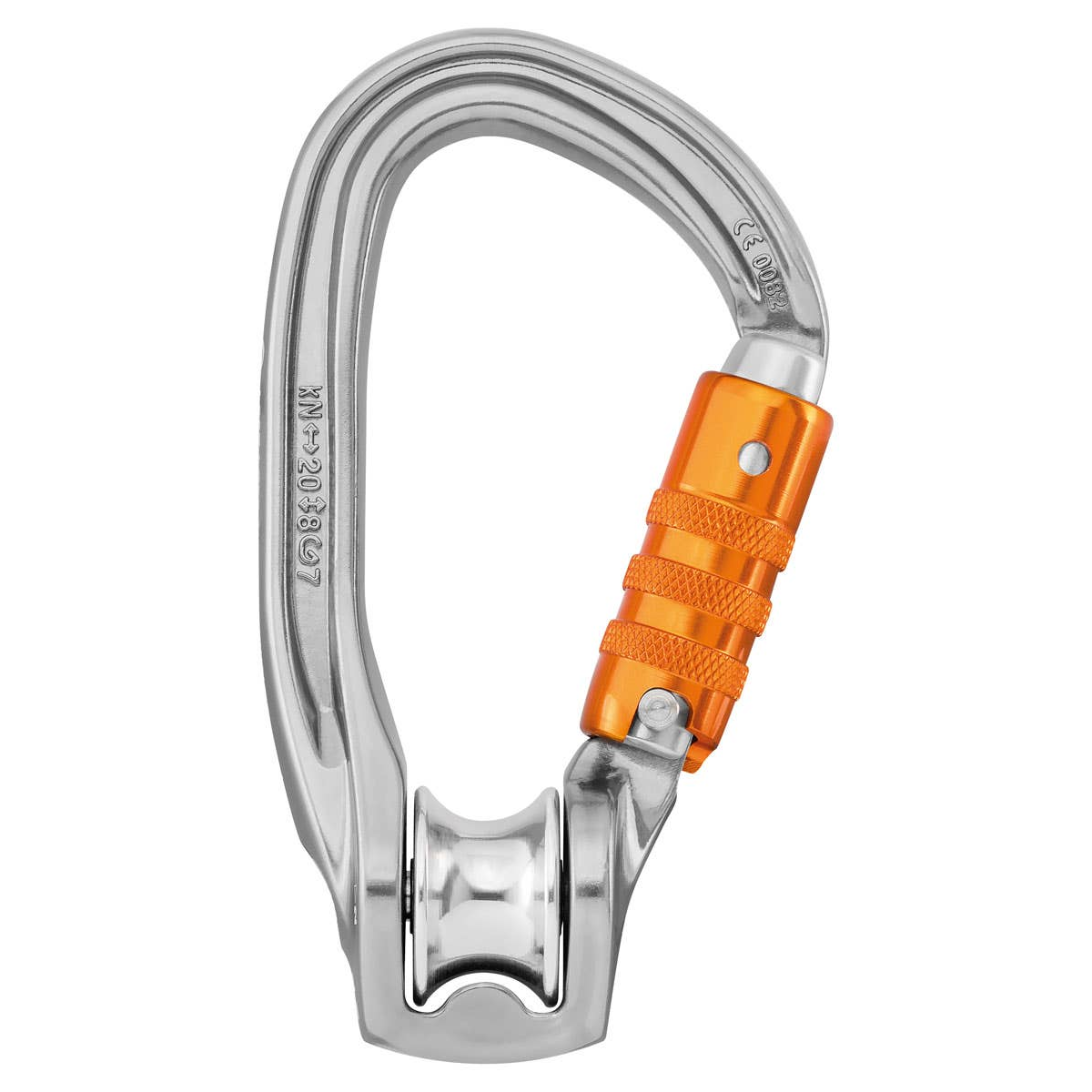

The Petzl Rollclip Z is a pulley-carabiner designed to facilitate installation on anchors and devices. It features a gate opening on the non-pulley side, allowing for easier attachment. The sheave is mounted on sealed ball bearings, providing excellent efficiency. The Keylock system prevents accidental snagging of the carabiner during use. The H cross-section of the carabiner ensures an improved strength-to-weight ratio and protects markings from abrasion. This model is equipped with the automatic TRIACT-LOCK locking system, which requires a triple-action gate opening for added security.
- Gate opening on the non-pulley side for easier installation
- Sheave mounted on sealed ball bearings for excellent efficiency
- Keylock system to prevent accidental snagging
- H cross-section for improved strength-to-weight ratio and protection against abrasion
- Automatic TRIACT-LOCK locking system with triple-action gate opening
Technical Specifications:
- Material: Aluminum
- Minimum Rope Diameter: 7 mm
- Maximum Rope Diameter: 13 mm
- Sheave Diameter: 18 mm
- Maximum Working Load: 4 kN
- Efficiency: 85%
- Major Axis Strength: 20 kN
- Minor Axis Strength: 8 kN
- Open Gate Strength: 7 kN
- Gate Opening: 20 mm
- Certifications: CE EN 362, EN 12278, UKCA, EAC
Materials:
- Carabiner: Aluminum
- Sheave: Aluminum
Dimensions:
- Weight: 110 g
- Gate Opening: 20 mm
Compatibility Information:
The Rollclip Z is compatible with ropes ranging from 7 mm to 13 mm in diameter. It is suitable for use in various climbing and rescue applications where a pulley-carabiner system is required.
