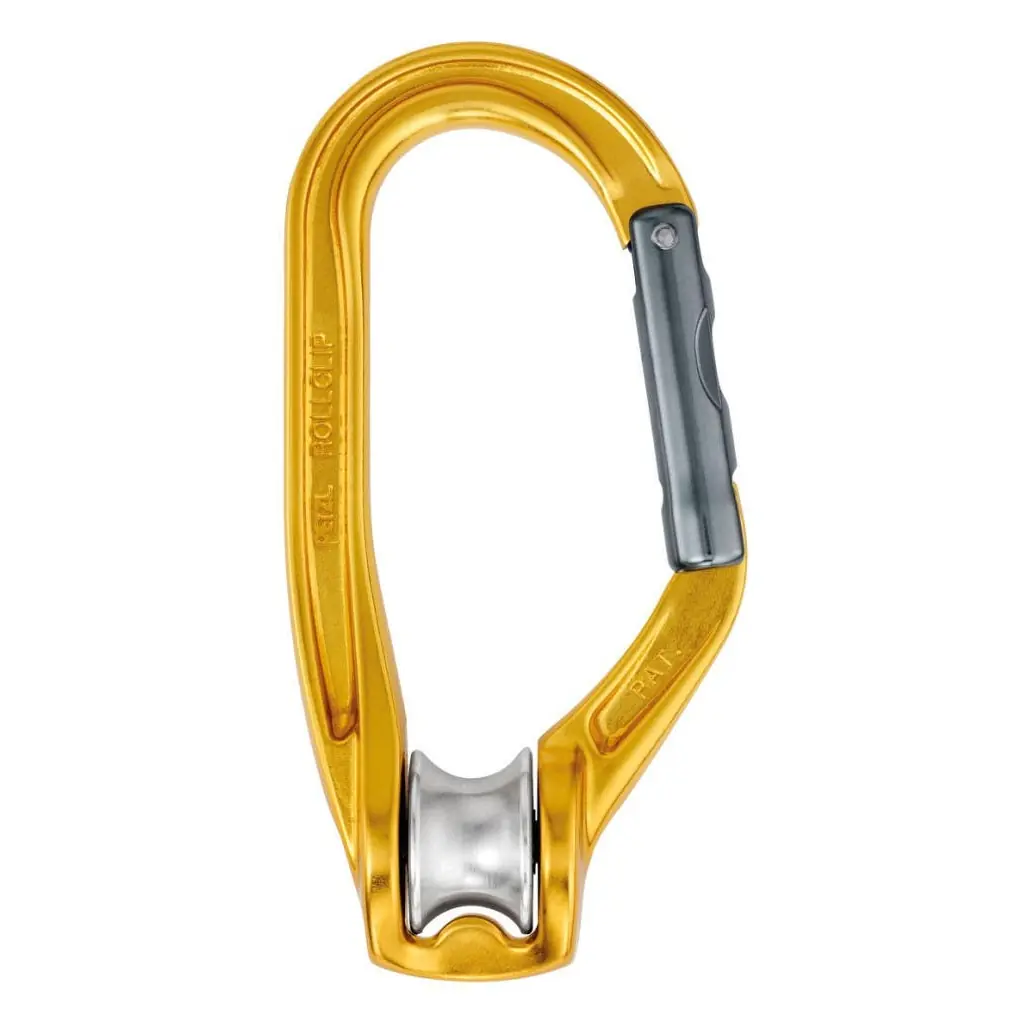

The Petzl ROLLCLIP A is a versatile pulley-carabiner designed to facilitate rope installation during work at height. It features a gate opening on the pulley side, allowing for easy attachment to anchors. The sheave is mounted on sealed ball bearings, ensuring excellent efficiency. The ROLLCLIP A is compatible with the CAPTIV positioning bar, which promotes loading along the major axis, reduces the risk of flipping, and keeps the device integrated. The Keylock system prevents accidental snagging when placing the pulley. The H cross-section of the carabiner enhances the strength-to-weight ratio and protects markings from abrasion. The ROLLCLIP A is available in two versions:
- Non-locking version (P74): Features a 25 mm gate opening and weighs 105 g.
- With TRIACT-LOCK (P74 TL): Features a 22 mm gate opening and weighs 115 g.
Technical Specifications:
- Material: Aluminum
- Minimum Rope Diameter: 7 mm
- Maximum Rope Diameter: 13 mm
- Sheave Diameter: 18 mm
- Maximum Working Load: 4 kN
- Efficiency: 85%
- Major Axis Strength: 20 kN
- Minor Axis Strength: 8 kN
- Open Gate Strength: 7 kN
Materials:
- Carabiner: Aluminum
- Sheave: Aluminum
Dimensions:
- Non-locking version (P74):
- Weight: 105 g
- Gate Opening: 25 mm
- With TRIACT-LOCK (P74 TL):
- Weight: 115 g
- Gate Opening: 22 mm
Compatibility Information:
- CAPTIV Positioning Bar: Compatible, enhances loading along the major axis and reduces flipping.
- Rope Compatibility: Suitable for ropes with diameters between 7 mm and 13 mm.
Certifications:
- Non-locking version (P74):
- CE EN 12275
- CE EN 12278
- UKCA
- EAC
- With TRIACT-LOCK (P74 TL):
- CE EN 362
- CE EN 12275
- CE EN 12278
- UKCA
- EAC
Additional Details:
- Guarantee: 3 years
- Inner Pack Count: 1
- Key Features:
- Sheave mounted on sealed ball bearings for excellent efficiency.
- Gate opening on the pulley side facilitates rope installation when fixed to the anchor.
- Compatible with the CAPTIV positioning bar to favor loading along the major axis and limit flipping.
- Keylock system prevents accidental snagging when placing the pulley.
- H cross-section of the carabiner ensures an improved strength-to-weight ratio and protects markings from abrasion.
