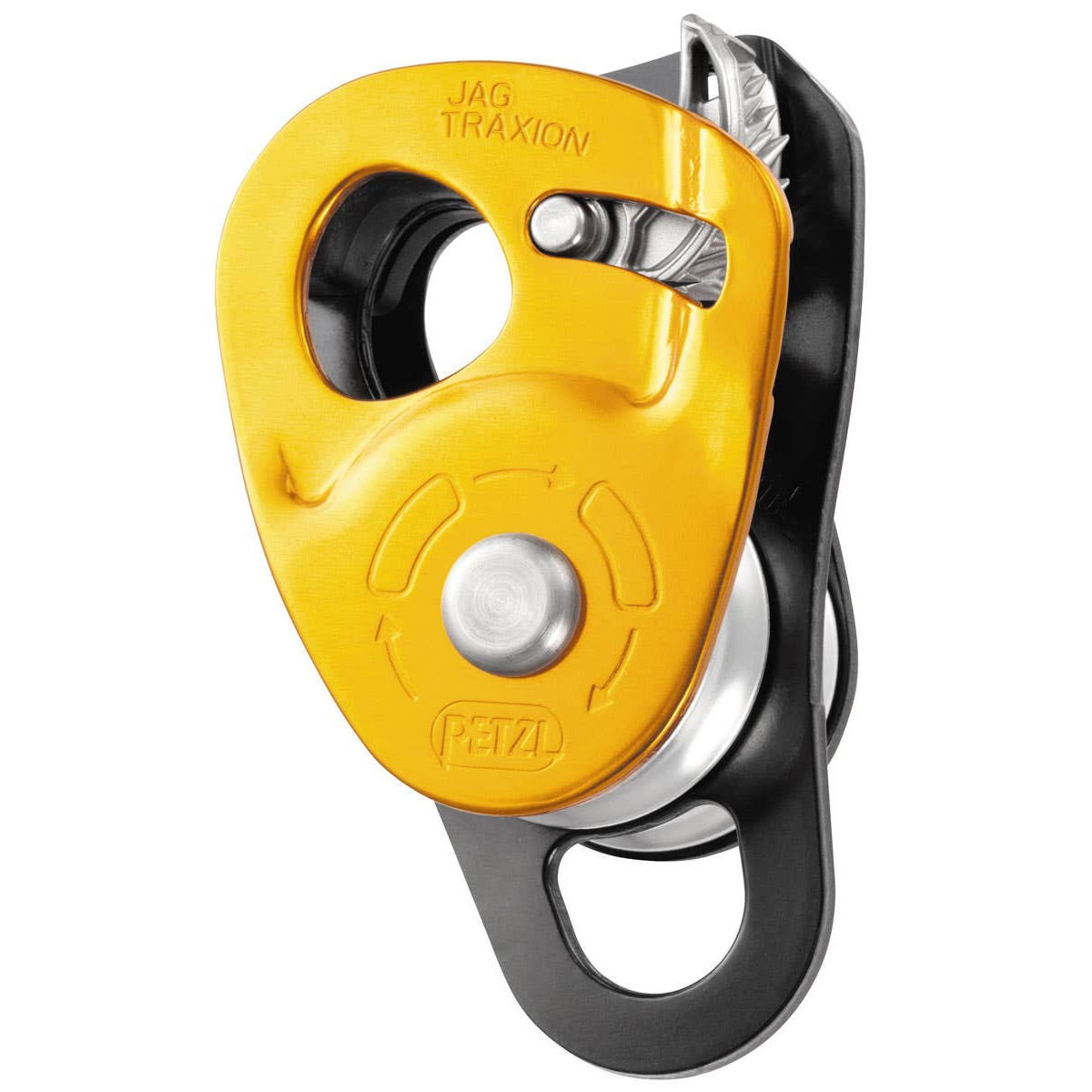

The Petzl JAG TRAXION is a high-efficiency double progress capture pulley designed to work in conjunction with the JAG double pulley, facilitating the creation of a 4:1 haul system. This setup is ideal for applications requiring mechanical advantage, such as rope rescue, climbing, and hauling operations.
- Toothed Cam with Self-Cleaning Slot: The toothed cam features a self-cleaning slot, ensuring optimal performance under various conditions, including frozen or muddy ropes.
- Sealed Ball Bearings: The sheave is mounted on sealed ball bearings, providing excellent efficiency and durability.
Technical Specifications
- Weight: 145 grams
- Material: Aluminum and nylon
- Rope Compatibility: Accepts ropes with diameters ranging from 8 mm to 11 mm
- Sheave Diameter: 25 mm
- Maximum Working Load: 6 kN (calculated as 2 × 1.5 kN × 2)
- Breaking Strength: 16 kN (calculated as 2 × 4 kN × 2)
- Efficiency: 91%
- Certifications: CE EN 567, UKCA, NFPA 1983 Technical Use
Materials
Dimensions
- Sheave Diameter: 25 mm
- Weight: 145 grams
Compatibility Information
The JAG TRAXION pulley is specifically designed to be used with the JAG double pulley to create a 4:1 haul system. This combination is ideal for applications requiring mechanical advantage, such as rope rescue, climbing, and hauling operations.
