The Petzl JAG RESCUE KIT is a ready-to-use, reversible rescue kit designed for efficient victim evacuation. It includes the JAG SYSTEM haul kit, a RING OPEN gated ring, an I’D EVAC descender with integrated brake, a CONNEXION FIXE 150 cm anchor strap, a BUCKET bag, and an AXIS 11 mm rope with two sewn terminations. This kit is available in three lengths: 30, 60, and 120 meters.
Key Features:
- Efficient Victim Evacuation:
- Pick-off: The JAG SYSTEM haul kit provides a 4:1 mechanical advantage, reducing the effort required to raise a victim for release.
- Evacuation: The I’D EVAC descender features an ergonomic handle for easy control of descent speed, with an anti-panic function that activates if the user pulls too hard, automatically braking and stopping the descent.
- Ready-to-Use for Quick Response:

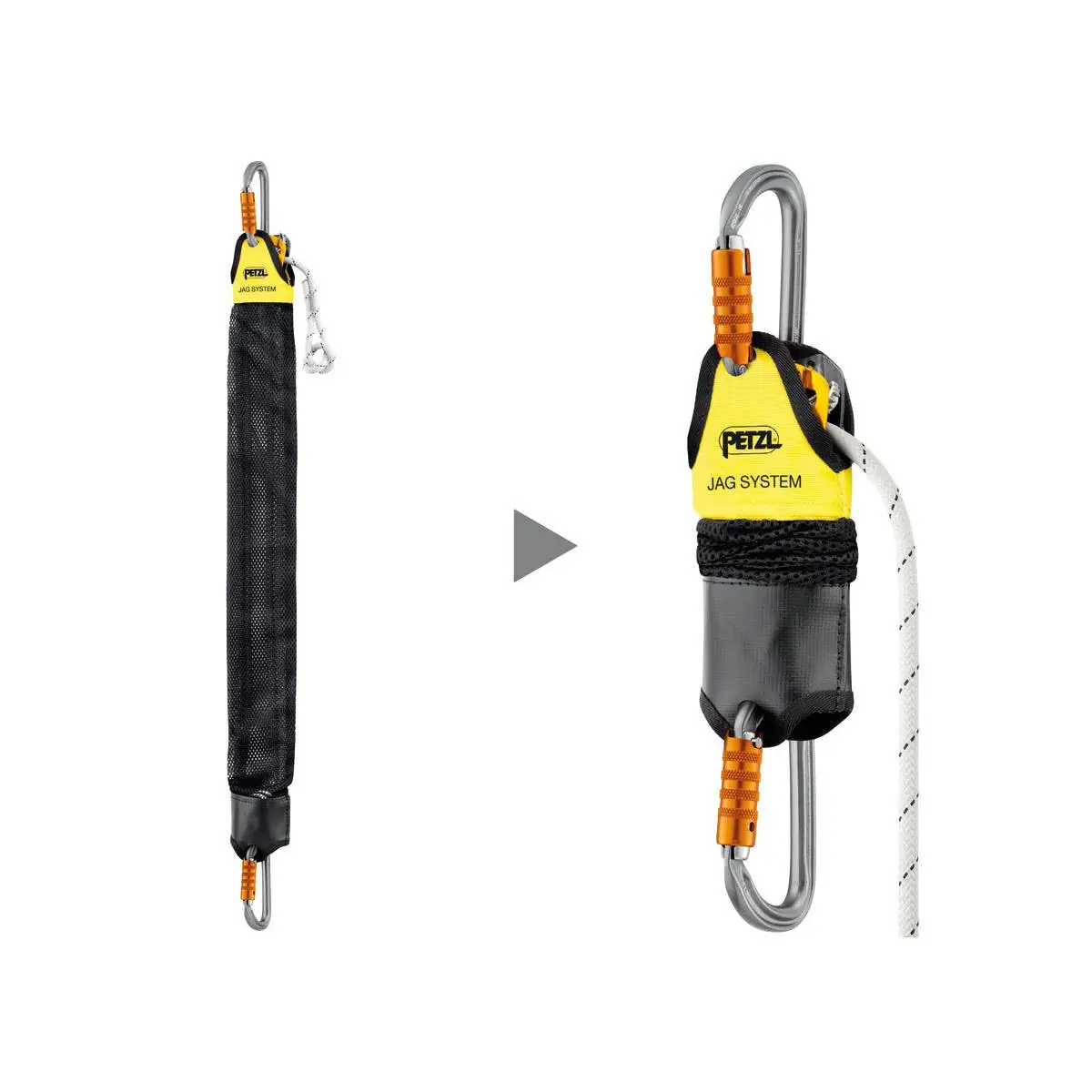

- The JAG SYSTEM is equipped with a flexible cover to prevent tangling.
- The rope is pre-installed in the closed brake integrated into the descender, ensuring better descent control and a constant redirect.
- The kit comes loaded and ready to use, with a BUCKET bag for easy transportation.
Technical Specifications:
- Working Load Limit: 250 kg
- Materials: Aluminum, steel, nylon, polyurethane, polyester
- Available Lengths: 30 m, 60 m, 120 m
- Weight:
- 30 m version: 4,460 g
- 60 m version: 6,760 g
- 120 m version: 11,460 g
Materials:
- Rope: AXIS 11 mm rope with two sewn terminations
- Haul Kit: JAG SYSTEM haul kit
- Descender: I’D EVAC descender with integrated brake
- Anchor Strap: CONNEXION FIXE 150 cm anchor strap
- Bag: BUCKET bag for transportation
Compatibility Information:
The JAG RESCUE KIT is designed for use in rescue operations requiring efficient victim evacuation. Its components are compatible with standard rescue protocols and equipment.
