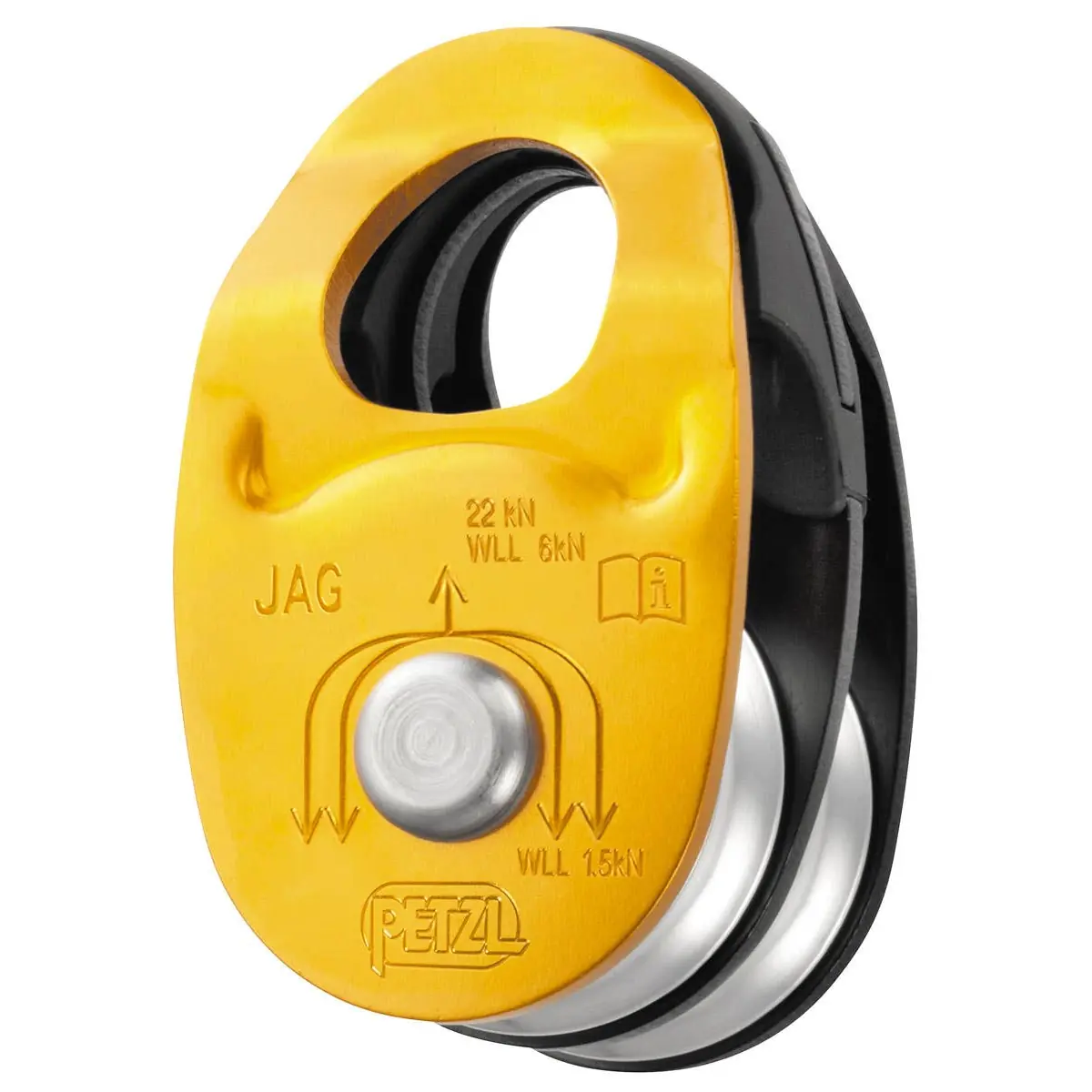

The Petzl JAG High-Efficiency Double Pulley is engineered to work seamlessly with the JAG TRAXION double progress capture pulley, forming a 4:1 haul system. This configuration is ideal for applications requiring efficient load management and mechanical advantage.
- High-Efficiency Design: Sheaves mounted on sealed ball bearings ensure excellent efficiency, achieving a 91% efficiency rate.
- Versatile Rope Compatibility: Accommodates ropes with diameters ranging from 8 mm to 11 mm, providing flexibility for various rope types.
- Durable Construction: Crafted from aluminum and nylon, the pulley is designed for longevity and reliable performance.
Technical Specifications:
- Weight: 120 g
- Sheave Diameter: 25 mm
- Maximum Working Load: 6 kN (calculated as 2 × 1.5 kN × 2)
- Breaking Strength: 16 kN (calculated as 2 × 4 kN × 2)
- Certifications: CE EN 12278, UKCA, NFPA 2500 Technical Use
Materials:
- Body: Aluminum
- Sheaves: Nylon
Compatibility Information:
- Designed to be used in conjunction with the JAG TRAXION double progress capture pulley to create a 4:1 haul system.
