Key Features:

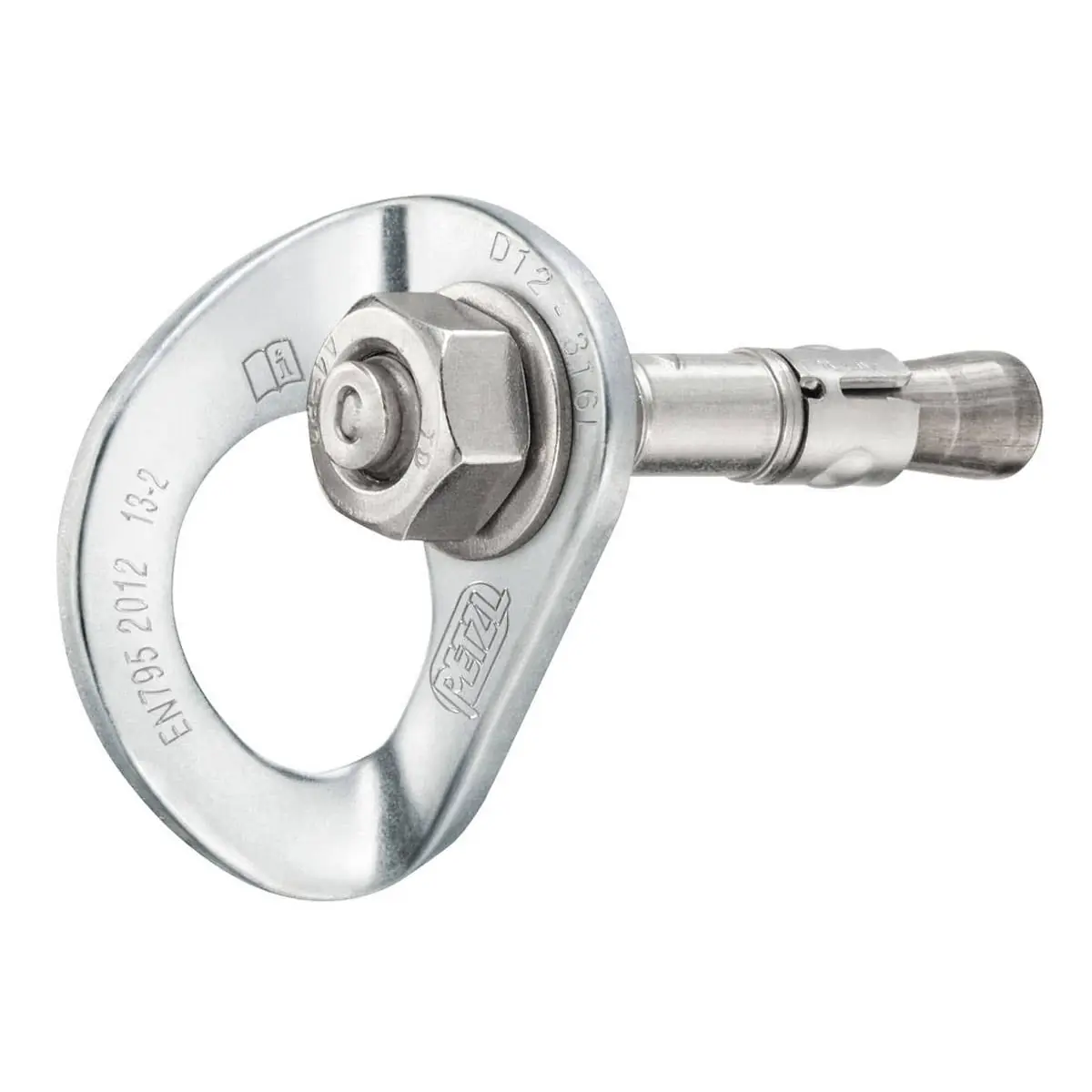

- Complete Assembly: Comprises a COEUR STAINLESS hanger, a 12 mm diameter bolt, and a nut, designed for typical exterior use.
- Corrosion Resistance: Constructed from 316L stainless steel, offering excellent resistance to corrosion in typical exterior environments.
- Easy Clipping: The wide, ergonomic connection point facilitates carabiner clipping, allowing installation of two carabiners simultaneously.
- Reduced Connector Wear: The thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners.
- Anti-Rotation System: Textured back prevents the hanger from turning during installation and under strong lateral loads during use.
Technical Specifications:
- Material: 316L stainless steel
- Diameter: 12 mm
- Total Bolt Length: 85 mm
- Drilling Diameter: 12 mm
- Drilling Depth: 85 mm
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 18 kN
- Certification: EN 959
- Warranty: 3 years
Materials:
- Hanger: 316L stainless steel
- Bolt: 316L stainless steel
- Nut: 316L stainless steel
Dimensions:
- Diameter: 12 mm
- Total Bolt Length: 85 mm
- Drilling Diameter: 12 mm
- Drilling Depth: 85 mm
Compatibility Information:
- Carabiner Compatibility: The wide connection point allows for the installation of two carabiners simultaneously.
Additional Details:
- Anti-Rotation System: The textured back of the hanger prevents rotation during installation and under strong lateral loads during use.
