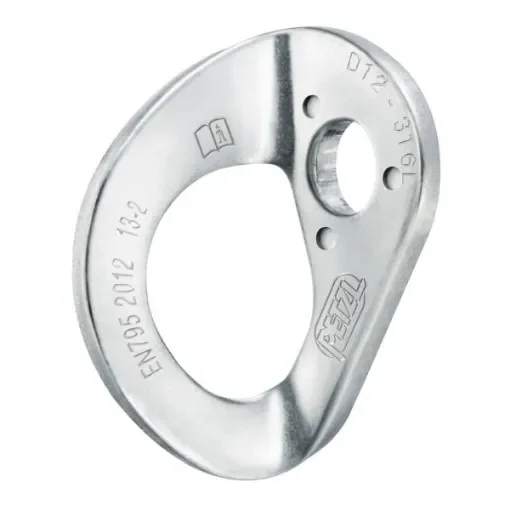

The Petzl Coeur Stainless Steel Anchor Plate 12mm is a high-quality, removable anchor designed for outdoor use, particularly in environments susceptible to corrosion. Crafted from 316L stainless steel, it offers excellent resistance to corrosion, ensuring durability and reliability.
- Corrosion Resistance: Made from 316L stainless steel, providing excellent resistance to corrosion in typical exterior environments.
- Easy Installation and Removal: Designed for quick and simple installation and removal without tools, allowing for reuse.
- Locking Function: Features a locking mechanism to limit the risk of accidental removal.
- Ergonomic Design: The wide, ergonomic connection hole facilitates easy clipping of carabiners and can accommodate up to two carabiners simultaneously.
- Reduced Connector Wear: The thickness and rounded edges of the hanger help reduce wear on carabiners.
- Anti-Rotation System: Textured back prevents the hanger from turning during installation and under heavy lateral loads during use.
Technical Specifications:
- Material: 316L Stainless Steel
- Diameter: 12 mm
- Weight: 60 g
- Drilling Requirements:
- Drill Bit Size: 12 mm
- Drill Depth: 85 mm
- Strength Ratings:
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 18 kN
- Shear Strength in 25 MPa Concrete: 25 kN
- Pull-Out Strength in 25 MPa Concrete: 20 kN
- Certifications: CE EN 795 A1, EN 959
- Operating Temperature Range: -40°C to +80°C
- Guarantee: 3 years
Materials:
- Anchor Plate: 316L Stainless Steel
- Locking Mechanism: Plastic components
Compatibility Information:
- Bolt Compatibility: Designed for use with 12 mm diameter bolts
- Carabiner Compatibility: Connection hole accommodates up to two carabiners simultaneously
Additional Details:
- Intended Use: Suitable for outdoor use and work environments
- Packaging: Sold individually
