Key Features:

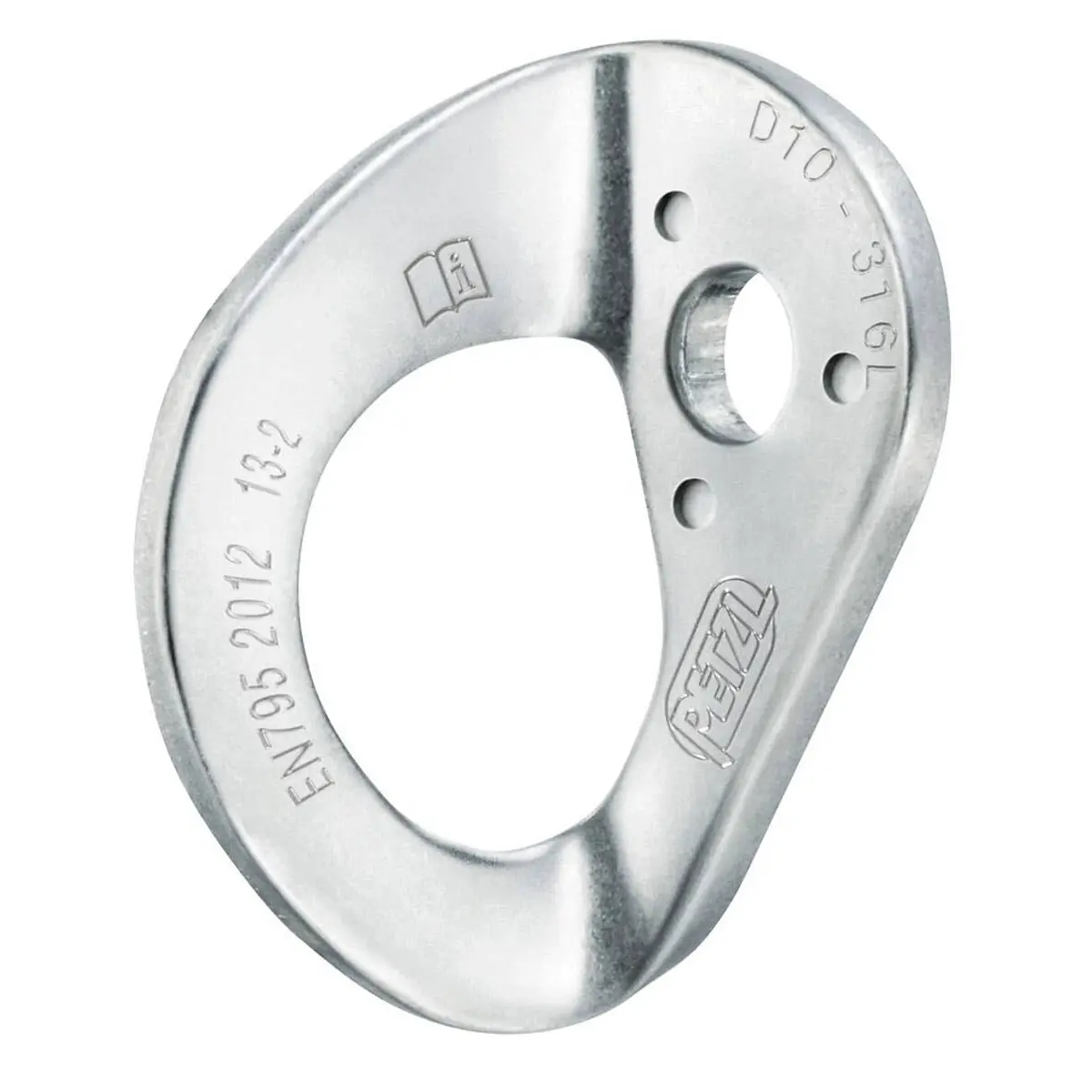

- Designed for outdoor use, the Petzl Coeur Stainless Steel Anchor Plate provides a reliable and durable solution for creating secure anchor points.
- The plate features an anti-rotation system with textured reliefs on the rear face, preventing it from turning during installation and under strong lateral stresses during use.
- The wide, ergonomic connection hole facilitates easy clipping of up to two carabiners simultaneously.
- Rounded edges of the connection hole help limit wear on carabiners.
Technical Specifications:
- Material: 316L Stainless Steel
- Diameter: 10 mm
- Weight: 65 g
- Resistance to Cutting on Concrete (50 MPa): 25 kN
- Pull-Out Strength in Concrete (50 MPa): 25 kN
- Certifications: EN 795 A1, EN 959
Materials:
- Constructed from 316L stainless steel, offering excellent resistance to corrosion, making it suitable for outdoor environments.
Dimensions:
- Length: 7 cm
- Drilling Depth: 7.5 cm
- Drilling Diameter: 10 mm
Compatibility Information:
- Designed for use with 10 mm diameter bolts.
- Suitable for creating anchor points in concrete with a compressive strength of 50 MPa.
Additional Details:
- Sold individually.
- Intended for outdoor use and work.
