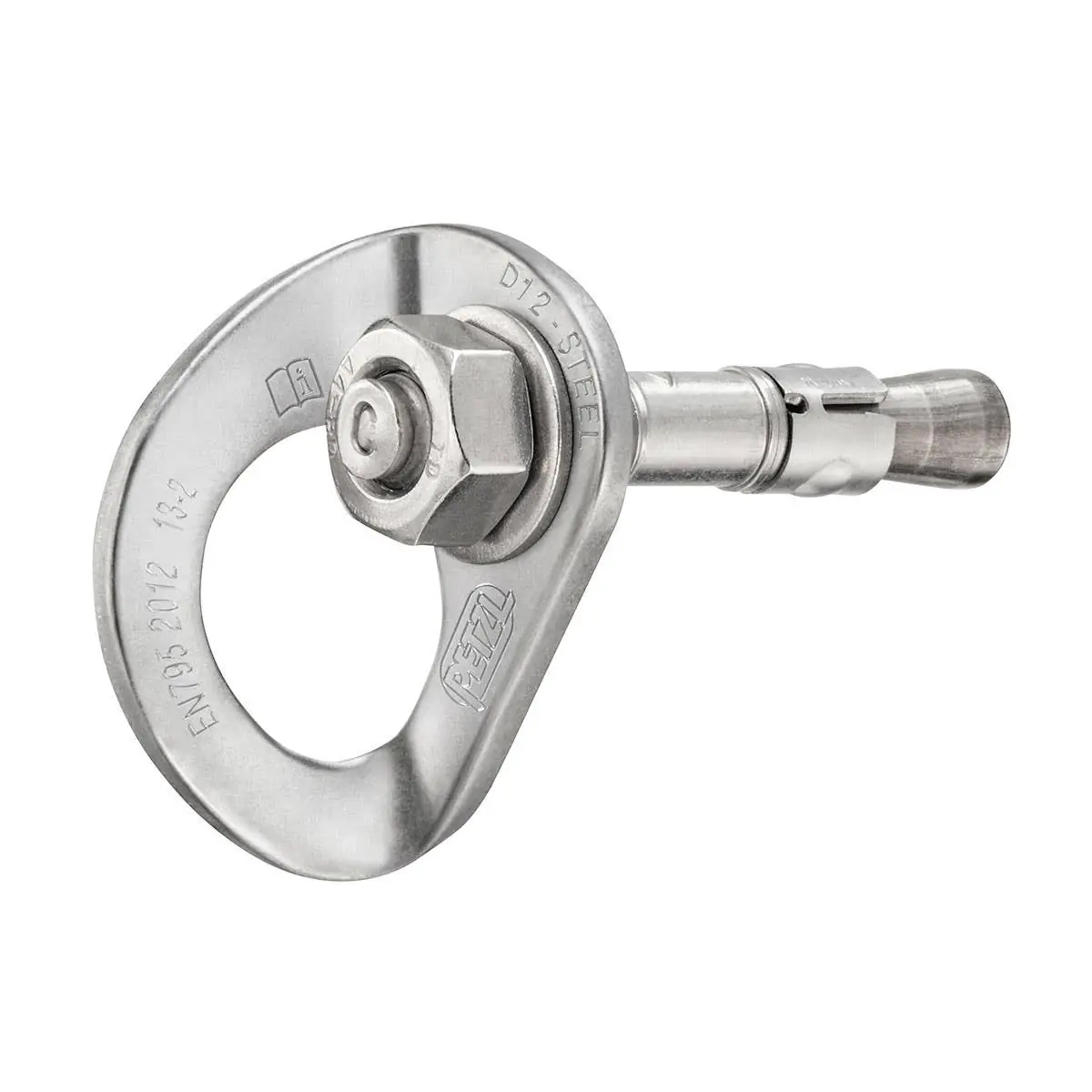

The COEUR BOLT STEEL 12 mm is a steel anchor system designed for interior use or non-permanent installations. This assembly includes a COEUR STEEL hanger, a 12 mm diameter bolt, and a nut, providing a durable and reliable solution for climbing and rope access applications.
- Complete and Durable Assembly: Comprises a COEUR STEEL hanger, a 12 mm diameter bolt, and a nut, ensuring a robust setup for climbing anchors.
- Easy Clipping: The wide, ergonomic connection point facilitates carabiner clipping, and the width of the attachment point allows installation of two carabiners simultaneously.
- Reduces Wear on Connectors: The thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners.
- Hanger Anti-Rotation System: The textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use.
Technical Specifications:
- Material: Steel
- Diameter: 12 mm
- Total Bolt Length: 105 mm
- Drilling Diameter: 12 mm
- Drilling Depth: 95 mm
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 18 kN
- Certification: EN 959
- Weight per Unit: 135 g
- Pack Size: 20 units
Materials:
- Hanger: Steel
- Bolt: Steel
- Nut: Steel
Dimensions:
- Hanger Diameter: 12 mm
- Total Bolt Length: 105 mm
- Drilling Diameter: 12 mm
- Drilling Depth: 95 mm
Compatibility Information: This anchor system is designed for interior use or non-permanent installations. It is compatible with standard 12 mm diameter bolts and is suitable for use in concrete with a compressive strength of 50 MPa.
