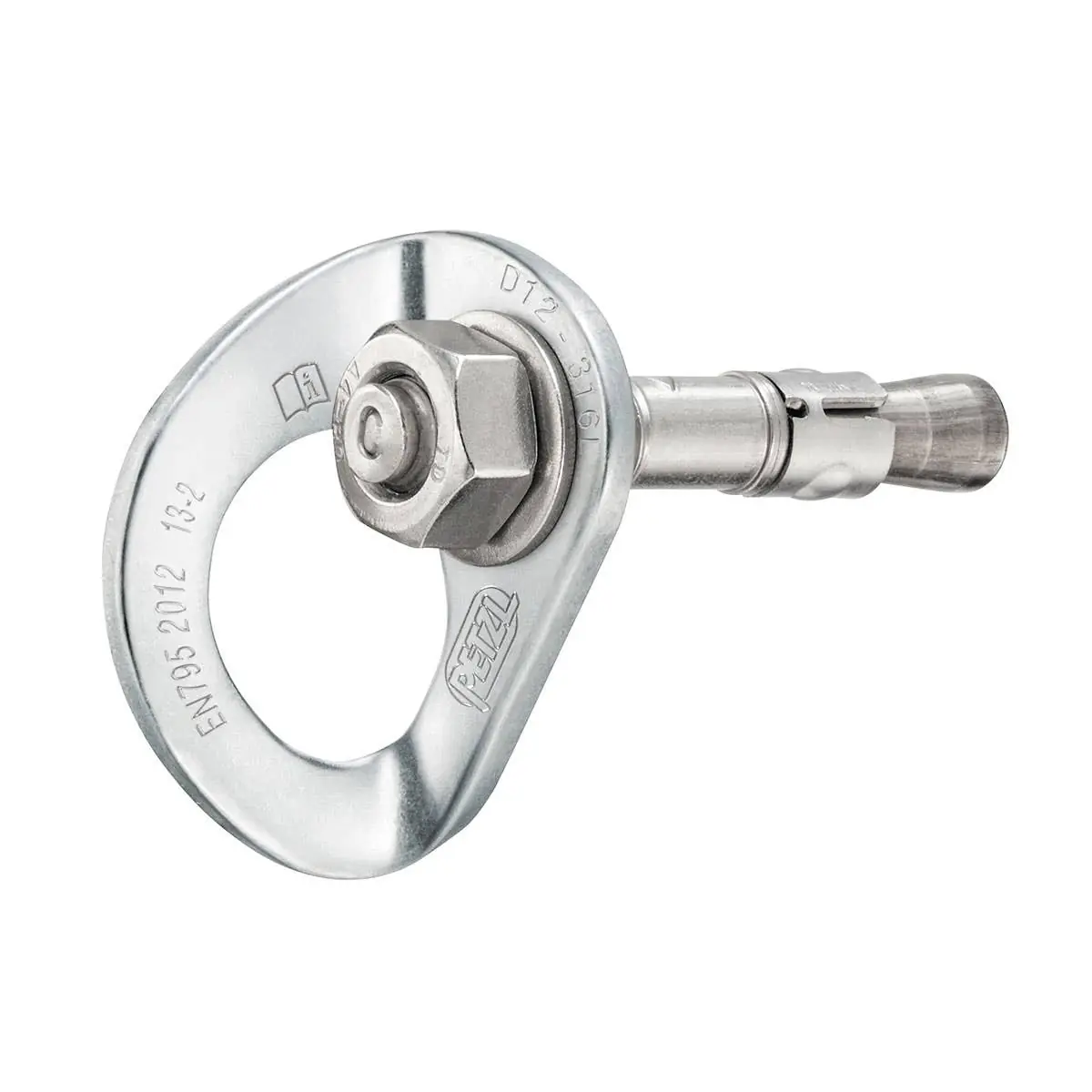

The Petzl COEUR BOLT STAINLESS 12 mm is a high-quality stainless steel anchor designed for typical exterior use. This durable assembly comprises a COEUR STAINLESS hanger, a bolt, and a nut, all made from 316L stainless steel, offering excellent resistance to corrosion in typical outdoor environments.
- Complete and Durable Assembly: Consists of a COEUR STAINLESS hanger, a bolt, and a nut, all made from 316L stainless steel for enhanced durability.
- Easy Clipping: The wide, ergonomic connection hole facilitates carabiner clipping, and its width allows for the installation of two carabiners simultaneously.
- Prevention of Connector Wear: The thickness of the hanger and the rounded edges of the connection hole minimize wear on carabiners.
- Anti-Rotation System: The textured back of the hanger prevents it from turning during installation and under strong lateral loads during use.
Technical Specifications:
- Diameter: 12 mm
- Drilling Diameter: 12 mm
- Drilling Length: 85 mm
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 18 kN
- Weight per Unit: 135 g
- Material: 316L Stainless Steel
- Certification: EN 959
Materials:
- Hanger, Bolt, and Nut: 316L Stainless Steel
Dimensions:
- Length: 85 mm
- Diameter: 12 mm
Compatibility Information: The COEUR BOLT STAINLESS 12 mm is designed for use in typical exterior environments and is compatible with standard 12 mm diameter bolts.
