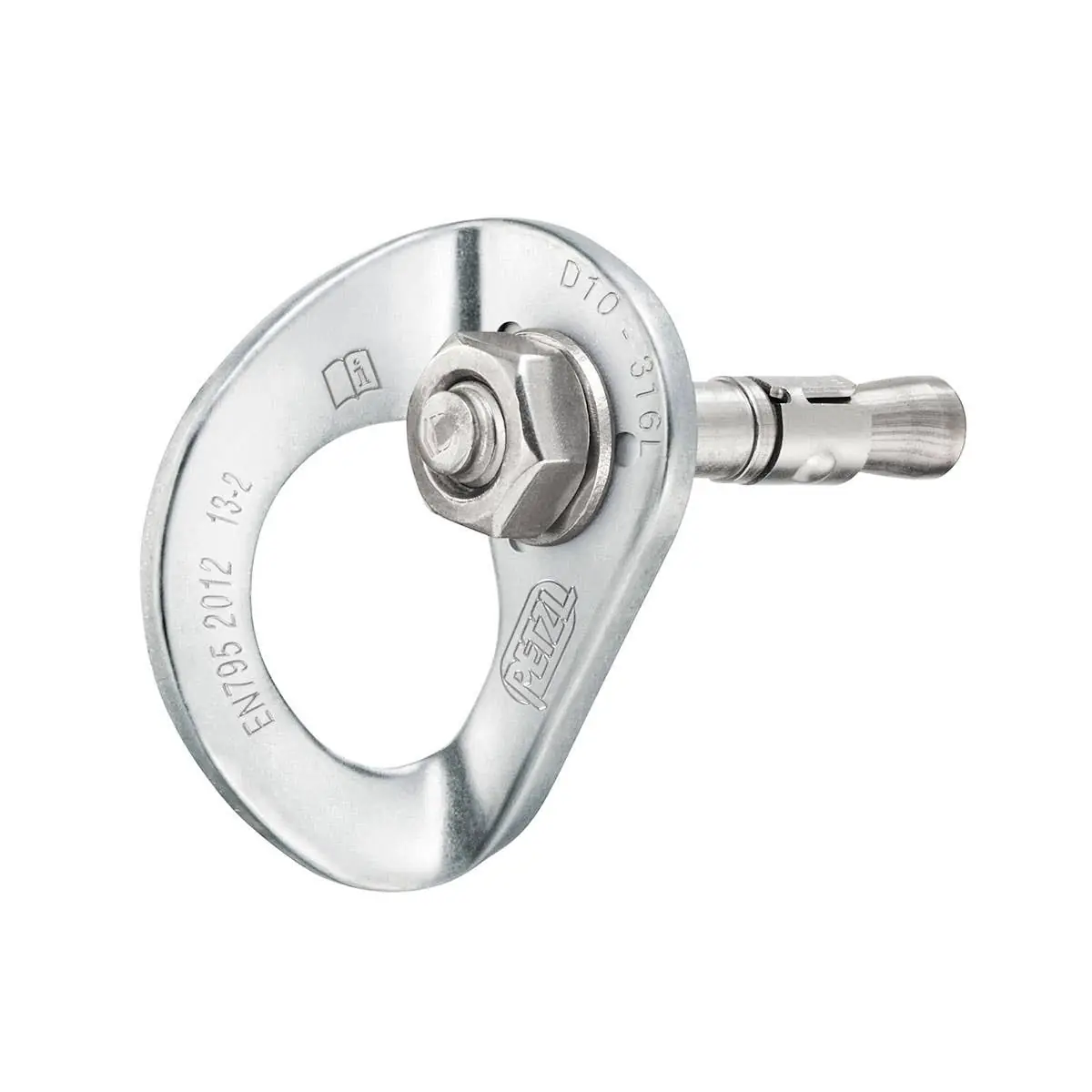

The Petzl COEUR BOLT STAINLESS 10 mm Anchor is a high-quality stainless steel anchor designed for typical exterior environments. This complete assembly includes a COEUR STAINLESS hanger, a bolt, and a nut, all made from 316L stainless steel, offering excellent resistance to corrosion.
- Complete and Durable Assembly: Comprises a COEUR STAINLESS hanger, a bolt, and a nut, all made from 316L stainless steel for enhanced durability.
- Easy Clipping: The wide, ergonomic connection point facilitates carabiner clipping, and the width of the attachment point allows installation of two carabiners simultaneously.
- Reduced Wear on Connectors: The thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners.
- Hanger Anti-Rotation System: The textured back of the hanger prevents it from turning during installation or when subjected to heavy lateral loads during use.
Technical Specifications:
- Material: 316L stainless steel
- Diameter: 10 mm
- Drilling Diameter: 10 mm
- Drilling Depth: 70 mm
- Total Bolt Length: 70 mm
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 15 kN
- Certifications: EN 959
Materials:
- Hanger: 316L stainless steel
- Bolt and Nut: 316L stainless steel
Dimensions:
- Diameter: 10 mm
- Drilling Diameter: 10 mm
- Drilling Depth: 70 mm
- Total Bolt Length: 70 mm
Compatibility Information:
This anchor is designed for use with 10 mm diameter bolts and is suitable for typical exterior environments. It is compatible with standard carabiners and can accommodate two carabiners simultaneously.
