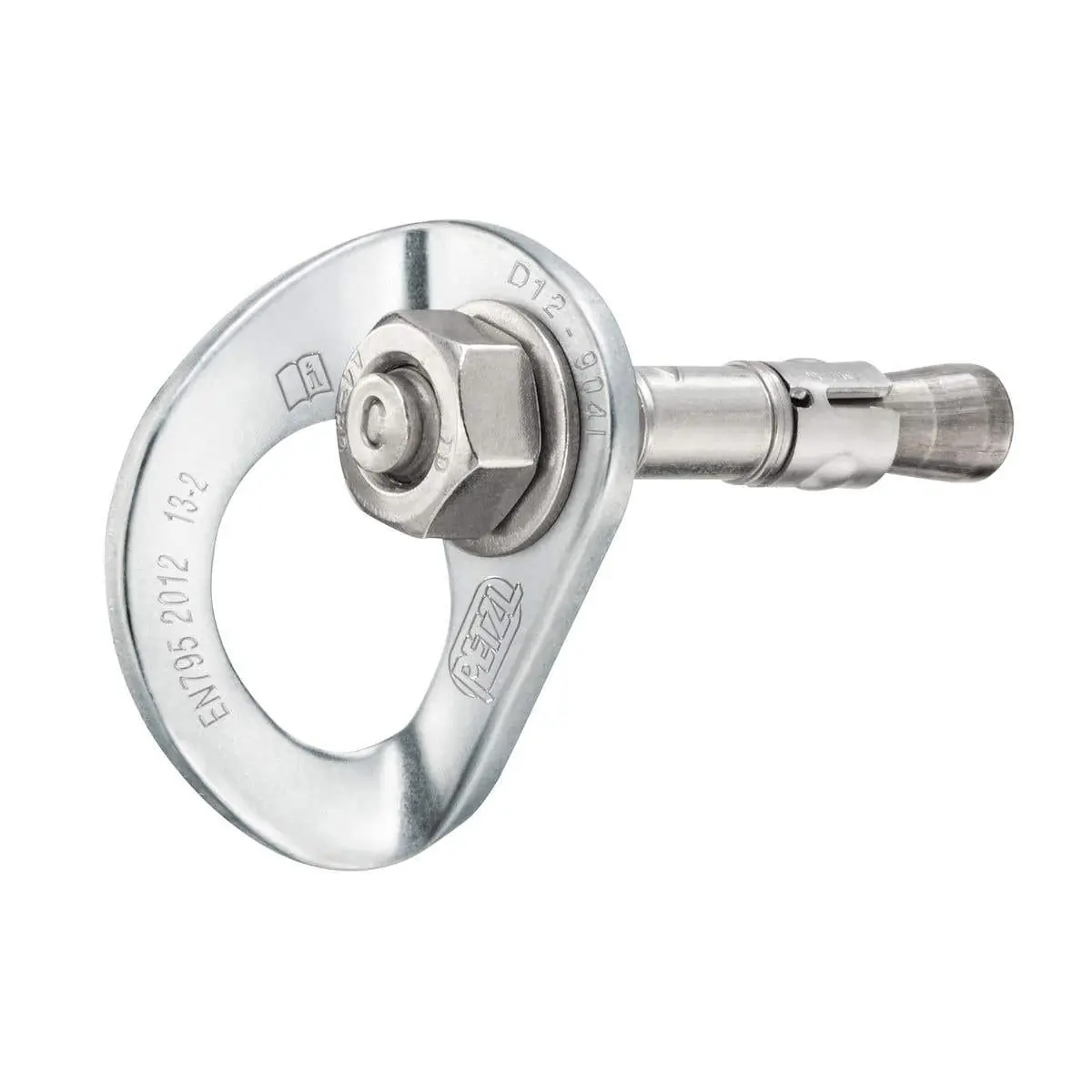

The COEUR BOLT HCR 12 mm is a high corrosion-resistant stainless steel anchor designed for use in corrosive environments, including coastal areas. This complete assembly includes a COEUR HCR hanger, a 12 mm diameter bolt, and a nut, ensuring durability and reliability in harsh conditions.
- Material: Constructed from 904 HCR (High Corrosion Resistance) stainless steel, offering exceptional resistance to corrosion in aggressive outdoor environments.
- Design: The hanger features an anti-rotation system with a textured back, preventing it from turning during installation or when subjected to heavy lateral loads.
- Connection Point: The wide, ergonomic connection hole facilitates easy clipping of carabiners and allows for the simultaneous installation of two carabiners.
- Wear Reduction: The thickness of the hanger and the rounded edges of the connection point minimize wear on connectors.
Technical Specifications:
- Diameter: 12 mm
- Total Bolt Length: 85 mm
- Weight: 135 g
- Drilling Diameter: 12 mm
- Drilling Depth: 8.5 cm
- Shear Strength in 50 MPa Concrete: 25 kN
- Pull-Out Strength in 50 MPa Concrete: 18 kN
- Certification: EN 959
- Warranty: 3 years
Materials:
- Hanger: 904 HCR stainless steel
- Bolt: 904 HCR stainless steel
- Nut: Compatible with 12 mm bolts
Dimensions:
- Hanger: Designed for 12 mm diameter bolts
- Bolt: 12 mm diameter, 85 mm total length
- Drilling Requirements: 12 mm drilling diameter, 8.5 cm drilling depth
Compatibility Information:
The COEUR BOLT HCR 12 mm is compatible with 12 mm diameter bolts and is designed for installation in concrete with a compressive strength of 50 MPa.
Additional Details:
- The hanger's anti-rotation system ensures stability during installation and use.
- The design allows for the installation of two carabiners simultaneously, enhancing versatility.
- The product is backed by a 3-year warranty, reflecting Petzl's commitment to quality and durability.
