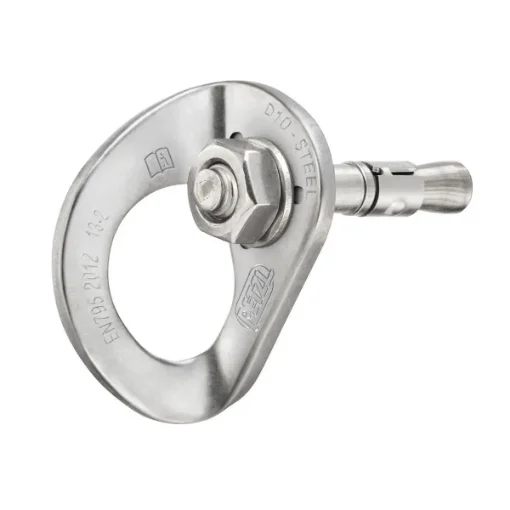

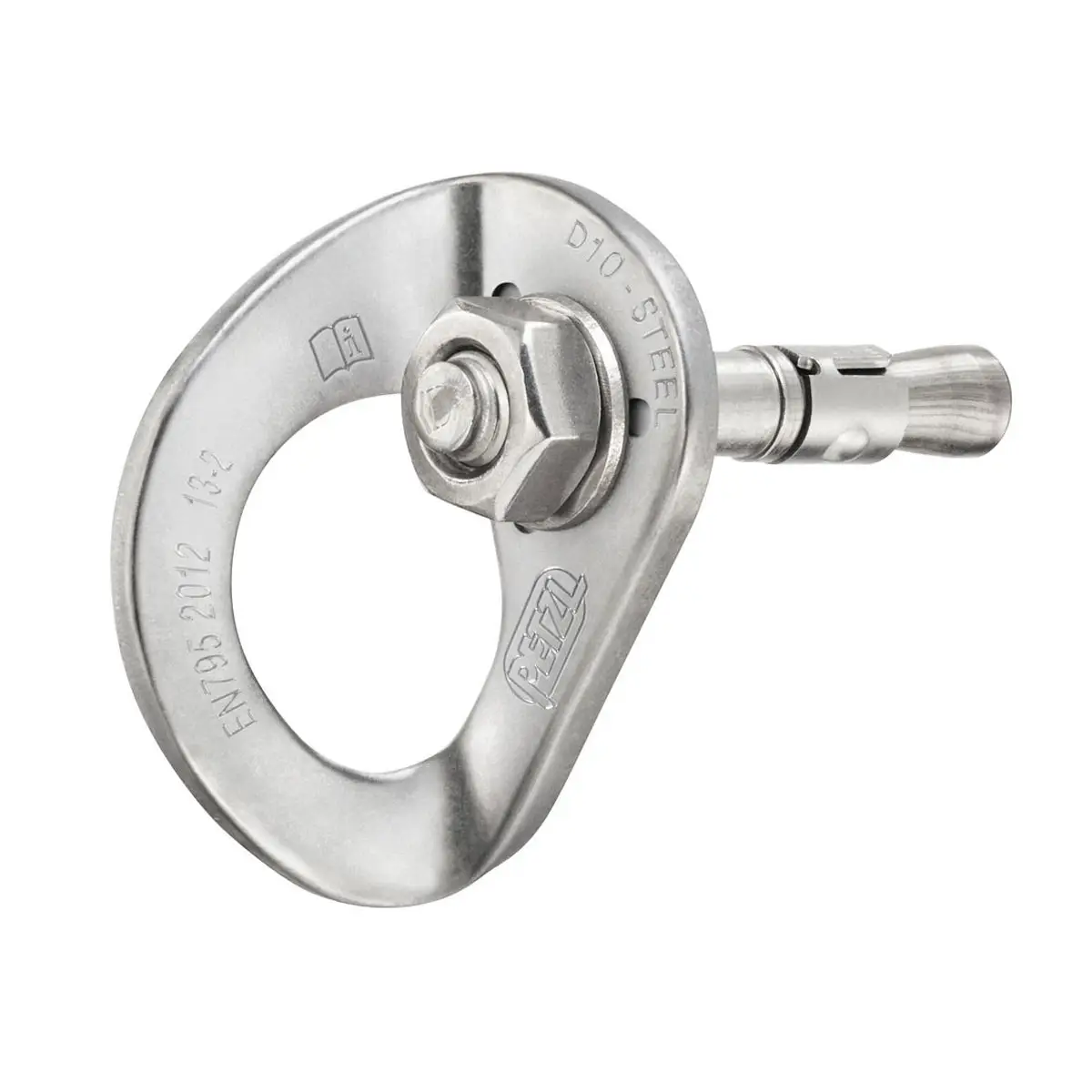

Petzl 10mm Steel Heart Bolt

Heart Bolt Steel 10mm - PETZL

Steel set consisting of a Heart plate, a bolt and a nut.

Ease of clipping:

• Wide and ergonomic connection hole facilitating the clipping of the carabiner,
• The width of the hole allows for the installation of two carabiners simultaneously.
• Prevention of connector wear: the high material thickness of the plate, as well as the rounded edges of the connection hole, limit connector wear.
• Anti-rotation system of the plate: reliefs on the back face preventing the plate from turning during the installation of the anchorage, but also during use, under strong lateral loads.

Features:

• Diameter 10 mm.
• Drilling length: 85 mm.
• Shear strength concrete 50 MPa: 23 kN.
• Pull-out strength concrete 50 MPa: 15 kN.
• This product has been manufactured in accordance with the requirements of regulation CE 2016/425 for PPE (category 3) following the standard: CE EN 959: 2018
• Weight: 110 g.
