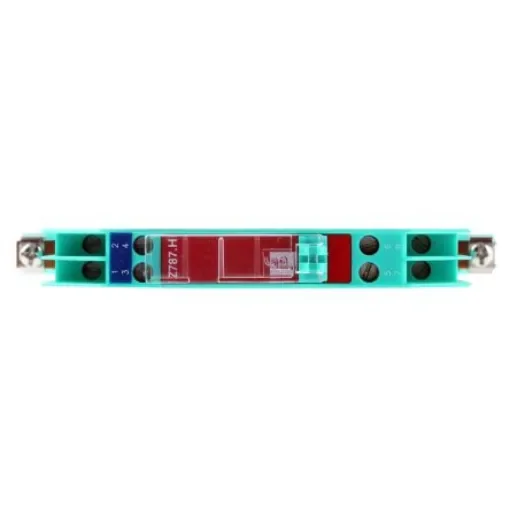

Pepperl + Fuchs 2 Channel Zener Barrier, ATEX - Z 787.H

BAS 01 ATEX 7005. IIC Class 1, Div1, Groups A-G. Z787.H Dual Channel. The solution for applications with 3-wire transmitters is implementing a combination of one 28V, 300O and one 28V barrier with diode return. Special consideration should be given to the internal voltage drop due to the diode return.,Typical application - 4-20mA transmit
